Application Field:

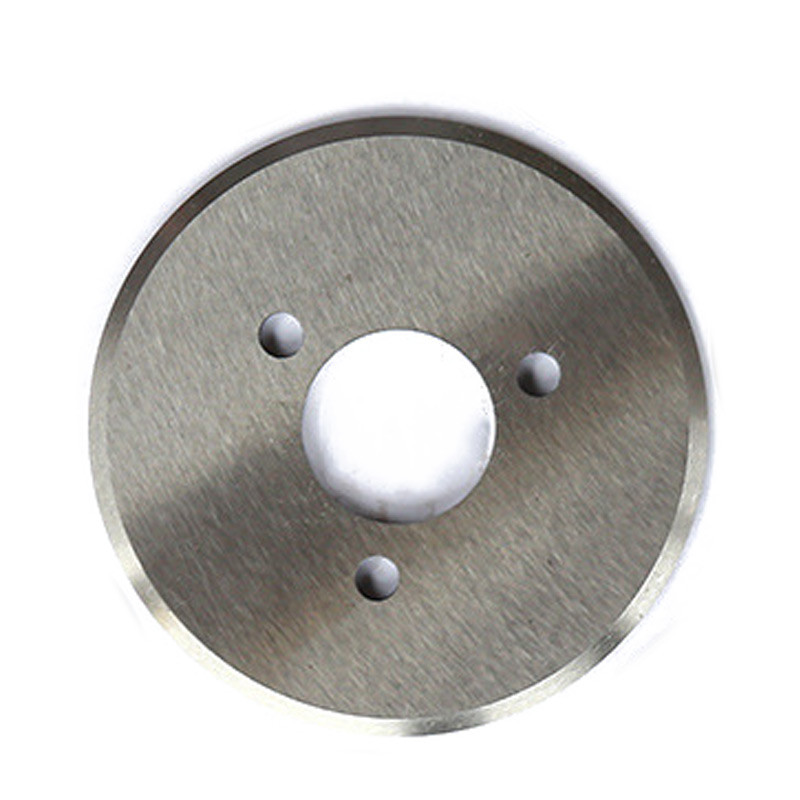

Finished of tungsten carbide disc mainly used for cutting paper, film, copper sheet and other metals etc.
Product Details--- Finished of tungsten carbide disc
Properties of material general use as tungsten carbide disc finished as below shows:
| Density | ||||||||
| Grade | ISO Code |
WC+Other | Co | Grain Size |
Density | Hardness | TRS | |
| (±0.5%) | (±0.5%) | (g/cm3)±0.1 | (HRA)±0.5 | (HV30) | (kgf/mm2) | |||
| CW05 | K05~K10 | 92.8 | 7 | Ultrafine | 14.60 | 93.0 | 1800 | 360 |
| CK100 | K15 | 94 | 6 | Fine | 14.83 | 92.2 | 1650 | 360 |
| CW10 | K20~K40 | 90 | 10 | Submicron | 14.35 | 92.5 | 1700 | 360 |
| CW15 | K20~K40 | 90 | 10 | Submicron | 14.35 | 91.8 | 1580 | 380 |
| CW20 | K40 | 88 | 12 | Submicron | 14.12 | 91.3 | 1510 | 370 |
| DK10 | K10 | 94.2 | 5.8 | Fine | 14.80 | 92.2 | 1650 | 300 |
| PK4 | K40 | 88 | 12 | Medium | 14.30 | 89.3 | 1280 | 360 |
| Please contact our representative if additional grade requirement is needed. | ||||||||
Features of Different Grades Material :
CW05:For machining non ferrous metals, aluminium alloys, glass and carbon fibre reinforced plastics, artificial carbon, graphite, cast irons of low or medium hardness, chilled castings, hardened steels"
CW10:For machining corrosion, acid and heat resistant steels, chromium alloyed steels, nickel & cobalt alloyed steels, titanium alloys, non ferrous metals, plastics.
DK10 :For machining gray cast iron, tempered iron, non alloyed steels, super alloys, titanium and tantalum alloys, copper, graphite, aluminium, heat resistant steels, plastics.
CW15:For machining corrosion, acid and heat resistant steels, chromium alloyed steels, nickel & cobalt alloyed steels, titanium alloys, non ferrous metals, plastics.
Product Specification
| Unground | Ground | L | ||||
| D (mm) | Tol. (mm) | T (mm) | Tol. (mm) | d (mm) | Tol. (mm) | Flatness (mm) |
| 10 | +0.4 | T | +0.4 | 4 | -0.4 | <0.2 |
| 20 | +0.6 | T | +0.6 | 5 | -0.4 | <0.2 |
| 30 | +0.8 | T | +0.8 | 8 | -0.4 | <0.2 |
| 30.5 | +0.8 | T | +0.8 | 7.7 | -0.4 | <0.2 |
| 32 | +0.8 | T | +0.8 | 8 | -0.4 | <0.2 |
| 40 | +0.8 | T | +0.8 | 10 | -0.4 | <0.2 |
| 50 | +1.0 | T | +0.8 | 13 | -0.6 | <0.2 |
| 50.5 | +1.0 | T | +0.8 | 12.7 | -0.6 | <0.2 |
| 55 | +1.0 | T | +0.8 | 10 | -0.6 | <0.2 |
| 55 | +1.0 | T* | +0.8 | 13 | -0.6 | <0.2 |
| 60 | +1.0 | T | +0.8 | 16 | -0.6 | <0.2 |
| 63.5 | +1.2 | T | +0.8 | 15.7 | -0.6 | <0.2 |
| 65 | +1.2 | T | +0.8 | 25 | -0.6 | <0.2 |
| 70 | +1.2 | T | +0.8 | 12.7 | -0.8 | <0.2 |
| 70 | +1.2 | T | +0.8 | 25.4 | -0.8 | <0.2 |
| 80 | +1.2 | T* | +0.8 | 22 | -0.6 | <0.2 |
| 80 | +1.2 | T | +0.8 | 25.4 | -0.6 | <0.2 |
| 90.5 | +1.2 | T | +0.8 | 21.7 | -0.6 | <0.2 |
| 95 | +1.2 | T | +0.8 | 22 | -0.6 | <0.2 |
| 100 | +1.2 | T | +0.8 | 22 | -0.8 | <0.2 |
| 100 | +1.2 | T | +0.8 | 25.4 | -0.8 | <0.2 |
Why choose us:
1.Advanced Technology: Dedicated in tungsten relevant material research and development for tens of years. Constantly introducing new technology and increase investing on high-end production equipment.
2.Comprehensive Service: Fast response to customer demands,short production cycle, rapid delivery to ensure delivery on time, and thorough sales-after service. Always lead you to well position in first round of market competition.
3.Rigorous QC: Rigorous inspection leads to well consistent quality.
4.Fully equipped: Outstanding processing capacity, multiple production lines, advanced metallurgy and machining equipment, professional supporting facilities.
5.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .
Quality Criteria
1.Hardness
2.Corrosion Resistance
3.Impact Strength
4.Toughness
5.Modulus of elasticity,Rigidity
6.Transverse Rupture Strength. Etc.
