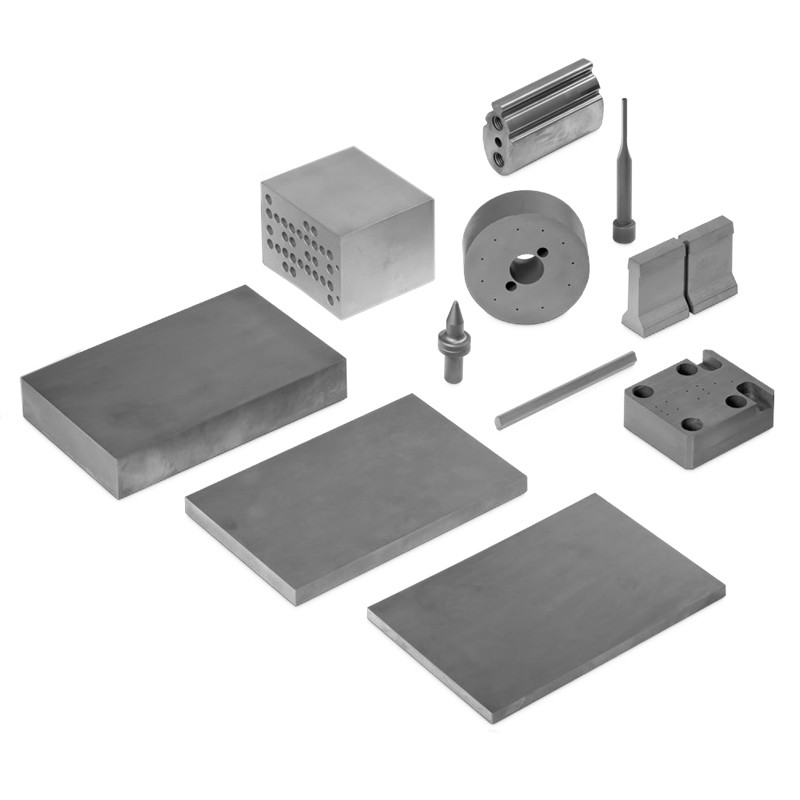

High Speed Stamping Tungsten Carbide Plates Sheet ISO9001

10
MOQ
negotiable , per the quantity and specification of order
Price
High Speed Stamping Tungsten Carbide Plates Sheet ISO9001
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: Preform Plate For Stamping
Customized Support: OEM,ODM
Product Type: Tungsten Carbide Material
Material: Virgin Tungsten Carbide Add Co Elements
Material Properties: To Be Defined,specific Properties Depends On The Grade Of Material We Use
Grain Size: Submicron,Medium,Coarse
Surface Treatment: Sintered Blanks
Specification: Customized
Characteristic: Preform Production
Sample Order: Acceptable
Usage: High Speed Carbide Punch Components
High Light:

Stamping Tungsten Carbide Plates

,

ISO9001 Tungsten Carbide Plates

,

ISO9001 Tungsten Carbide sheet

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: Preform Plate for Stamping
Payment & Shipping Terms
Packaging Details: 1. We will choose the right package according to the shape of the product. Usually choose foam plastic, cartons, large cartons, professional plastic packaging boxes and so on. 2. According to your choice or our recommendation of the best transportation pla
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T
Supply Ability: 100*1000pcs/month
Product Description


Tungsten Carbide Preform Plates For High Speed Stamping Steel,Copper & Alloy etc

Application Field:
Preform production had become a trend in the market to cope with fast-changing & complicated industrial applications. From semi-finished cutting tool, boring bar, to PCD tool shank, Drow produces near-net-shape matrix in a single process to satisfy customers' multiple demands.

As for preform stamping plates, widely use for high speed carbide punch components. Suitable for stamping various metal through using different grades of tungsten carbide material.
Product Details--- Tungsten Carbide Preform Plates

  • Material : 100% virgin tungsten carbide add Co elements.
  • Grade:PNF16/PNF23/PF30/PK7, or to be defined per your additional grade requirement.
  • Usage:Used for further machining to become finished punch components.
  • Characteristic:Preform.

Properties of material general use as preform plates as below shows:

Material GradeMaterial Suitable Usage
  • PNF16:
§ Innovative Grade. For stamping <0.6 stainless steel, Widely use in Electronics and Automotive connectors and lead frame industry. Hardness of HRA92, grade with combined high wear resistance and high toughness properties. Fine/ Ultrafine grain size & corrosion resistance that help to maintain a good surface quality and improve material stability & tool precision.
  • PNF23:
§ For stamping silicon steel, rotor, stator. Medium grain size & corrosion resistance properties help to improve tool stability & precision. Good wear and corrosion resistance. Highly optimized for general use.
  • PF30:
§ For thin metal sheet, copper alloy stamping. Widely used in connector stamping, semi-conductor stamping and electronics stamping industry.
  • PK7:
§ For silicon steel, rotor, stator, iron sheet, aluminum stamping. Fine grain size, highly optimized for general use, A balance between toughness and surface quality

Please contact our representative if additional grade requirement is needed.


Product Specification:
For the tool and die industry we exclusively deliver sintered parts which are produced on our state-of-the-art machines.It is therefore necessary to speak the same ‘language’ with regard to the dimensions indicated in the drawings in order to manufacture products correctly .See illustrations below:

High Speed Stamping Tungsten Carbide Plates Sheet ISO9001 0
In this context, it is a big advantage for you that you can illustrate the hole specifications etc in a simplified way. The part will then be supplied in accordance with the appropriate tables.The way of transmitting the drawing represents a significant factor with regard to the time taken to process an order and the quality that is achieved. This is why we are going to use drawing transmission via e-mail to a larger degree.The file format should be .dwg or .dxf and large data amounts should be zipped.
High Speed Stamping Tungsten Carbide Plates Sheet ISO9001 1
High Speed Stamping Tungsten Carbide Plates Sheet ISO9001 2


Why choose us:
1.Advanced Technology: Dedicated in tungsten relevant material research and development for tens of years. Constantly introducing new technology and increase investing on high-end production equipment.
2.Comprehensive Service: Fast response to customer demands,short production cycle, rapid delivery to ensure delivery on time, and thorough sales-after service. Always lead you to well position in first round of market competition.
3.Rigorous QC: Rigorous inspection leads to well consistent quality.
4.Fully equipped: Outstanding processing capacity, multiple production lines, advanced metallurgy and machining equipment, professional supporting facilities.
5.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .

Quality Criteria
1.Hardness
2.Corrosion Resistance
3.Impact Strength

4.Toughness
5.Modulus of elasticity,Rigidity
6.Transverse Rupture Strength. Etc.
FAQ
Q1. Could you offer OEM and ODM service?
A:It’s okay , we have more than 10 years experience in OEM service.Our professional R&D team is dedicated to design products to fit various demands of customers. They can always offer the professional advice and solutions for you!
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your sample policy?
A: As for cemented carbide materials, we can supply the sample if we have ready parts in stock, but the customers have to kindly pay the sample cost and the courier cost
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Our production is based on ISO9001,rigorous inspection and strictly quality control system in our production process.
Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6: What else product can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
