Application Field:
Tungsten Carbide Stamping Rods widely use for high speed carbide punch components. Suitable for stamping various metal through using different grades of tungsten carbide material.

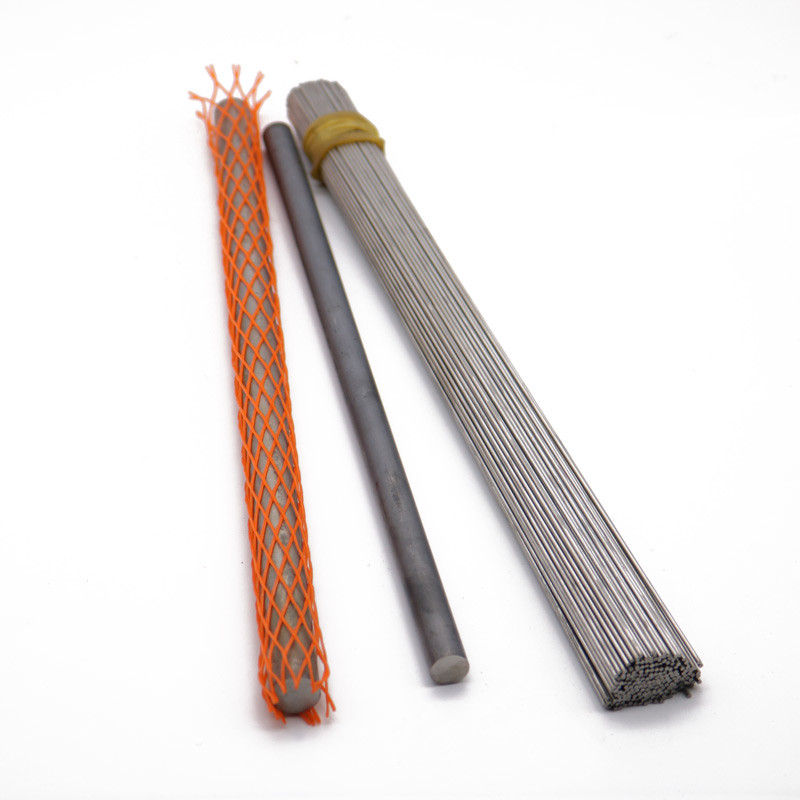

Product Details--- Tungsten Carbide Punch Rods
Properties of material general use as punch rods as below shows:
Grade | ISO Code |
Co | grain size | Density | Hardness | T.R.S. | Fracture Toughness KIC |
||
(±0.5%) | (μm) | (g/cm3) | HRA | HV30 | kgf/mm2 | Mpa | MPa*m1/2 | ||
CT25+ | K10~K20 | 11 | 0.2~0.5 | 14.15 | 92.3 | 1660 | 380 | 3750 | 9 |
PW30 | K10~K30 | 13 | 0.5~0.8 | 14.15 | 90 | 1355 | 350 | 3330 | 12 |
PK4 | K30~K40 | 12 | 1.3~2.5 | 14.3 | 89.3 | 1280 | 340 | 3330 | 13 |
PK7 | K40 | 15 | 0.8~1.3 | 13.95 | 89.3 | 1280 | 340 | 3330 | 13 |
PK5 | K30~K40 | 12 | 1.3~2.5 | 14.31 | 88.3 | 1200 | 340 | 3330 | 17 |
Please contact our representative if additional grade requirement is needed. |
Features of Different Grades Material :
1.CTF25+:For stamping thin copper alloy, lead frame and for making small punches. Ultrafine grade with high wear resistance, homogenous grain size, tremendously improve tool life.
2.PW30:For thin metal sheet, copper alloy stamping. Widely used in connector stamping, semi-conductor stamping and electronics stamping industry.
3.PK4:For silicon steel, rotor, stator, iron sheet, aluminum stamping. Medium grain size, highly optimized for general application.
4.PK5:For metal sheet stamping, medium/coarse grain size, high toughness. Highly optimized for general use.
5.PK7:For silicon steel, rotor, stator, iron sheet, aluminum stamping. Fine grain size, highly optimized for general use, A balance between toughness and surface quality.
Product Specification:
D | L | D Tol. | Grade | ||||
mm | mm | mm | CT25+ | PW30 | PK4 | PK7 | PK5 |
2.0 | 330 | +0.2/+0.4 | ● | ||||
3.0 | 330 | +0.2/+0.4 | ● | ● | ● | ||
3.5 | 330 | +0.2/+0.4 | ● | ||||
4.0 | 330 | +0.2/+0.4 | ● | ● | ● | ||
4.5 | 330 | +0.2/+0.4 | ● | ||||
5.0 | 330 | +0.2/+0.4 | ● | ● | ● | ||
5.5 | 330 | +0.2/+0.4 | ● | ||||
6.0 | 330 | +0.2/+0.4 | ● | ● | ● | ● | ● |
6.5 | 330 | +0.2/+0.4 | ● | ● | ● | ● | |
7.0 | 330 | +0.2/+0.4 | ● | ● | ● | ● | ● |
7.5 | 330 | +0.2/+0.5 | ● | ● | ● | ● | |
8.0 | 330 | +0.2/+0.5 | ● | ● | ● | ● | ● |
8.5 | 330 | +0.2/+0.5 | ● | ● | ● | ● | |
9.0 | 330 | +0.2/+0.5 | ● | ● | ● | ● | |
9.5 | 330 | +0.2/+0.5 | ● | ● | ● | ● | |
10.0 | 330 | +0.2/+0.5 | ● | ● | ● | ● | ● |
11 | 330 | +0.2/+0.5 | ● | ● | ● | ● | |
12 | 330 | +0.3/+0.6 | ● | ● | ● | ● | ● |
13 | 330 | +0.3/+0.6 | ● | ● | ● | ● | |
14 | 330 | +0.3/+0.6 | ● | ● | ● | ● | ● |
15 | 330 | +0.3/+0.6 | ● | ● | ● | ● | |
16 | 330 | +0.3/+0.6 | ● | ● | ● | ● | ● |
17 | 330 | +0.3/+0.7 | ● | ● | ● | ● | |
18 | 330 | +0.3/+0.7 | ● | ● | ● | ● | ● |
19 | 330 | +0.3/+0.7 | ● | ● | ● | ● | |
20 | 330 | +0.3/+0.7 | ● | ● | ● | ● | ● |
Other dimensions and grade are upon request ●:Standard item |
Why choose us:
1.Advanced Technology: Dedicated in tungsten relevant material research and development for tens of years. Constantly introducing new technology and increase investing on high-end production equipment.
2.Comprehensive Service: Fast response to customer demands,short production cycle, rapid delivery to ensure delivery on time, and thorough sales-after service. Always lead you to well position in first round of market competition.
3.Rigorous QC: Rigorous inspection leads to well consistent quality.
4.Fully equipped: Outstanding processing capacity, multiple production lines, advanced metallurgy and machining equipment, professional supporting facilities.
5.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .
Quality Criteria
1.Hardness
2.Corrosion Resistance
3.Impact Strength
4.Toughness
5.Modulus of elasticity,Rigidity
6.Transverse Rupture Strength. Etc.
