Semi-Finished Tungsten Carbide Material For Precise Die And Punch Mold Components

10
MOQ
negotiable , per the quantity and specification of order
Price
Semi-Finished Tungsten Carbide Material For Precise Die And Punch Mold Components
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: Semi-finished Products For Die
Customized Support: OEM,ODM
Product Type: Tungsten Carbide Material
Material: Raw Tungsten Carbide Add Co Element
Material Properties: Specific Properties As Below Shows
Grain Size: Submicron,Medium,Coarse
Surface Treatment: Rough/rough Grinding/grinding
Specification: Customized
Sample Order: Acceptable
Usage: Mainly Used For Precision Mold And Die
High Light:

Semi-Finished Tungsten Carbide Material

,

Tungsten Carbide Material Die

,

Semi-Finished Tungsten Carbide Die

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: Tungsten carbide die blank
Payment & Shipping Terms
Packaging Details: 1. We will choose the right package according to the shape of the product. Usually choose foam plastic, cartons, large cartons, professional plastic packaging boxes and so on. 2. According to your choice or our recommendation of the best transportation pla
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T
Supply Ability: 100*1000pcs/month
Product Description

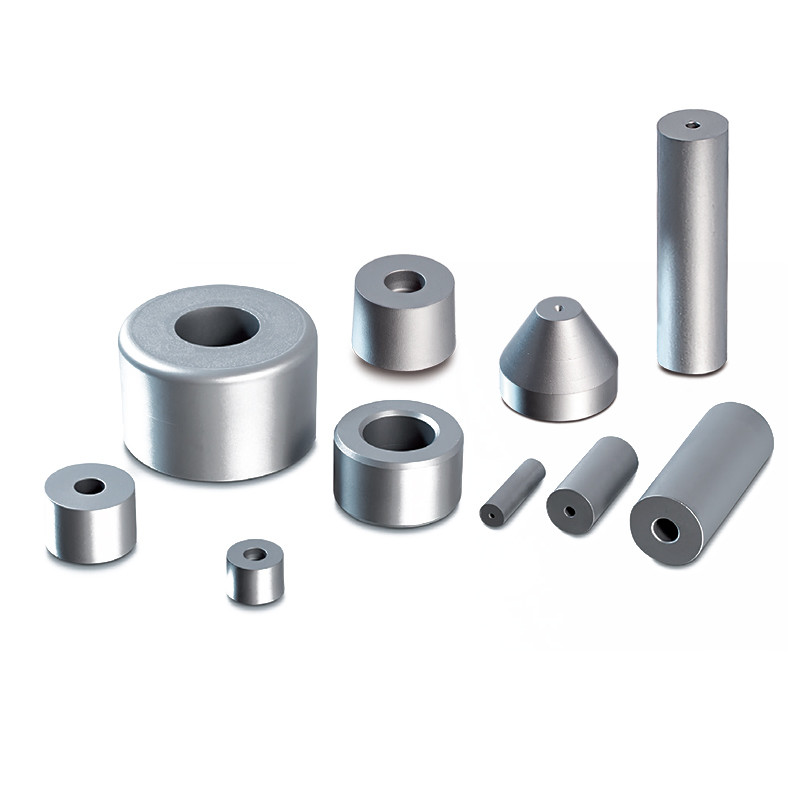

Tungsten Carbide Semi-finished Products for Precision Die and Punch Mold Components



Application Field:
Tungsten Carbide Semi-finished Products for Die are pre-processed and could become finished product quickly with a little further process. Preform and pre-processing material had become a trend in the market to cope with fast-changing & complicated industrial applications.With our accurate tungsten carbide selection, higher tool life,higher customized and higher cost-effectiveness can be achieved.


Product Details--- Semi-finished Products for Die

  • Material : Raw tungsten carbide material add Co elements.
  • Grade:DK7/CW30/DK4/DK5, or to be defined per your additional grade requirement.
  • Customization: It's available to specialize your order according to your drawings.
  • Characteristic: Preform and pre-processing.
  • Usage:Mainly used for precision mold and die.

Properties of material general use as Semi-finished Products for Dies as below shows:

Grade Co grain size Density Hardness T.R.S.
(±0.5%) (μm) (g/cm3) HRA HV30 kgf/mm2
DK7 15 1 13.95 89.3 1280 360
CW30 13 0.8 14.15 90 1355 350
DK4 12 1.0~2.0 14.3 89.3 1280 340
DK5 12 2.0~3.0 14.31 88.3 1200 340



Features of Different Grades Material :

DK7:For silicon steel, rotor, stator, iron sheet, aluminum stamping. Fine grain size, highly optimized for general use, A balance between toughness and surface quality

CW30:For thin metal sheet, copper alloy stamping. Widely used in connector stamping, semi-conductor stamping and electronics stamping industry

DK4 :For silicon steel, rotor, stator, iron sheet, aluminum stamping. Medium grain size, highly optimized for general application.

DK5 :For metal sheet stamping, medium/coarse grain size, high toughness. Highly optimized for general use.



Product Specification

1.Kindly offer us drawings if you need customize.

2.To be defined material grades per your different application.

Semi-Finished Tungsten Carbide Material For Precise Die And Punch Mold Components 0



Why choose us:

1.Advanced Technology: Dedicated in tungsten relevant material research and development for tens of years. Constantly introducing new technology and increase investing on high-end production equipment.
2.Comprehensive Service: Fast response to customer demands,short production cycle, rapid delivery to ensure delivery on time, and thorough sales-after service. Always lead you to well position in first round of market competition.
3.Rigorous QC: Rigorous inspection leads to well consistent quality.
4.Fully equipped: Outstanding processing capacity, multiple production lines, advanced metallurgy and machining equipment, professional supporting facilities.
5.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .





Advanced Machining Ability

Semi-Finished Tungsten Carbide Material For Precise Die And Punch Mold Components 1

Kinyet focuses on tungsten relevant material research and development all the time. Through constantly introducing new technology and increase investing on hign-end production equipment, Kinyet is able to offer molds solution with high-quality-price-ratio, include high precison,higher tooling life and cost effective etc. Now Kinyet is mergered with Drow. With this powerful combination, believe we will create more excellent products for consumer in the future!


Quality Criteria
1.Hardness
2.Corrosion Resistance
3.Impact Strength

4.Toughness

5.Modulus of elasticity,Rigidity

6.Transverse Rupture Strength. Etc.


FAQ

Q1. Could you offer OEM and ODM service?
A:It’s okay , we have more than 10 years experience in OEM service.Our professional R&D team is dedicated to design products to fit various demands of customers. They can always offer the professional advice and solutions for you!
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your sample policy?
A: As for cemented carbide materials, we can supply the sample if we have ready parts in stock, but the customers have to kindly pay the sample cost and the courier cost
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Our production is based on ISO9001,rigorous inspection and strictly quality control system in our production process.
Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6: What else product can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
