Application Field:

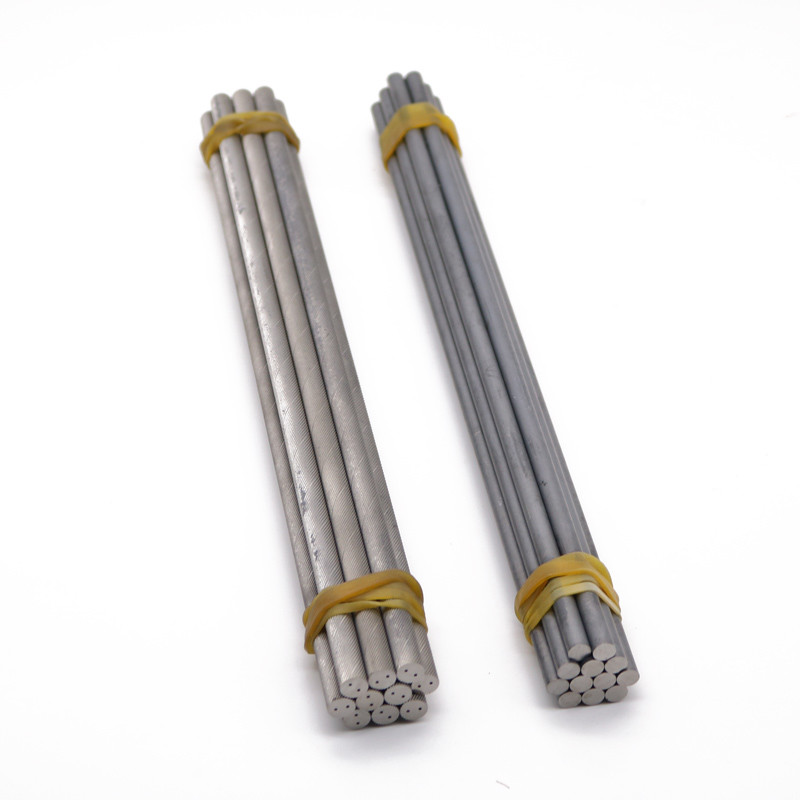

Tungsten Solid Carbide Rods with Double Special Degree Helical Coolant Holes is mainly used in cutting tool industry, drill, reamer and so on.Two inner coolant hole help decrease machining temperature while processing.Special degree inner hole could be offered like Y-shape-rods etc.
We Drow dedicated in Tungsten Carbide Material tens of years.We are able to advice you professional material selection and offer you material solution to meet your complex and fast-changing application.
Product Details--- Double Special Degree Inner Holes Rods
Properties of material general use as Double Inner Hole Rods as below shows:
| Grade | ISO Code |
Co | grain size | Density | Hardness | T.R.S. | Fracture Toughness KIC |
||
| (±0.5%) | (μm) | (g/cm3) | HRA | HV30 | kgf/mm2 | Mpa | MPa*m1/2 | ||
| CW15 | K20~K40 | 10 | 0.5~0.8 | 14.35 | 91.8 | 1580 | 380 | 3800 | 10 |
| CK200 | K20~K40 | 10 | 0.5~0.8 | 14.4 | 91.3 | 1510 | 400 | 4000 | 10.5 |
| Please contact our representative if additional grade requirement is needed. | |||||||||
Features of Different Grades Material :
1.CW15:Well balanced physical properties, very good at universal machining of alloyed / non-alloyed steel.
2.CK200:For stainless steel & heat-resistant alloys machining under work-condition of low cutting speed & high feed rate. Selective submicron carbide grade for optimum tool toughness.
Product Specification
| Angle | D | L | d | TK | Grade | Range of Drill Diameter | Nominal Pitch Reference | |||
| ° | mm | mm | mm | mm | CW15 | CK200 | Blue | White | Yellow | |
| 45.5 | 6.0 | 330 | 0.70 | 2.40 | ○ | ○ | 4.7~6.0 | 17.89 | 18.52 | 19.18 |
| 42.7 | 6.0 | 330 | 0.40 | 1.70 | ○ | ○ | 3.7~6.0 | 19.70 | 20.41 | 21.13 |
| 38.1 | 6.0 | 330 | 0.70 | 2.40 | ○ | ○ | 4.7~6.0 | 23.19 | 24.04 | 24.92 |
| 36.1 | 6.0 | 330 | 0.70 | 2.40 | ○ | ○ | 4.7~6.0 | 25.07 | 25.85 | 26.66 |
| 34.7 | 6.0 | 330 | 0.75 | 2.25 | ○ | ○ | 4.7~6.0 | 26.39 | 27.22 | 28.09 |
| 33.0 | 6.0 | 330 | 0.70 | 2.40 | ○ | ○ | 4.7~6.0 | 28.30 | 29.03 | 29.78 |
| 37.6 | 8.0 | 330 | 0.75 | 2.85 | ○ | ○ | 5.5~8.0 | 31.51 | 32.66 | 33.87 |
| 35.8 | 10.0 | 330 | 1.00 | 3.80 | ○ | ○ | 7.3~10.0 | 42.25 | 43.56 | 44.92 |
| 33.6 | 10.0 | 330 | 1.20 | 4.00 | ○ | ○ | 7.7~10.0 | 45.88 | 47.34 | 48.87 |
| 32.5 | 14.0 | 330 | 1.30 | 5.60 | ○ | ○ | 10.3~14.0 | 67.37 | 69.12 | 70.93 |
| 30.7 | 15.0 | 330 | 1.40 | 7.35 | ○ | ○ | 12.4~15.0 | 77.38 | 79.45 | 81.62 |
| 1. Nominal Pitch: Categorise in 3 regions. The nominal pitch number is the reference for drill up to 12XD 2. Above 12XD Drill: Nominal pitch marked at the end of rods is the reference for drill over 12XD ●=Standard Stock ○=Make-to-Order |
||||||||||
Why choose us:
1.Advanced Technology: Dedicated in tungsten relevant material research and development for tens of years. Constantly introducing new technology and increase investing on high-end production equipment.
2.Comprehensive Service: Fast response to customer demands,short production cycle, rapid delivery to ensure delivery on time, and thorough sales-after service. Always lead you to well position in first round of market competition.
3.Rigorous QC: Rigorous inspection leads to well consistent quality.
4.Fully equipped: Outstanding processing capacity, multiple production lines, advanced metallurgy and machining equipment, professional supporting facilities.
5.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .
Quality Criteria
1.Hardness
2.Corrosion Resistance
3.Impact Strength
4.Toughness
5.Modulus of elasticity,Rigidity
6.Transverse Rupture Strength. Etc.
