Precision Profile Grinding PG Punch Pins Die Components For Stamping Work

1pcs
MOQ
Negotiable
Price
Precision Profile Grinding PG Punch Pins Die Components For Stamping Work
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Kinyet
Model Number: PG Punch Pins
Customized Support: OEM,ODM
Product Type: Punch Mold Components
Material: Carbide/Ceramic /HSS Etc
Involve Technology: Cylindrical Grinding, PG, Wire-electrode Cutting, Etc
Surface Treatments: Polish Or Fine Grinding
Specification: Customized
Coating: To Be Defined Per Your Demands
Accuracy: ±0.001mm
Surface Roughness: RZ~~0.2um / F1.0mm/min
Advantages: High Wear Resistance,precise And Stable Quality
Sample Order: Acceptable
Usage: Stamping Work
High Light:

Precision punch pins

,

Stamping Work punch pins

,

Stamping Work die components

Basic Infomation
Place of Origin: China
Brand Name: Kinyet
Certification: ISO9001:2008
Model Number: PG Punch Pins
Payment & Shipping Terms
Packaging Details: 1. We will choose the right package according to the shape of the product. Usually choose foam plastic, cartons, large cartons, professional plastic packaging boxes and so on. 2. According to your choice or our recommendation of the best transportation pla
Delivery Time: 3 or more work days
Payment Terms: T/T etc
Supply Ability: 10*1000pcs/month
Product Description

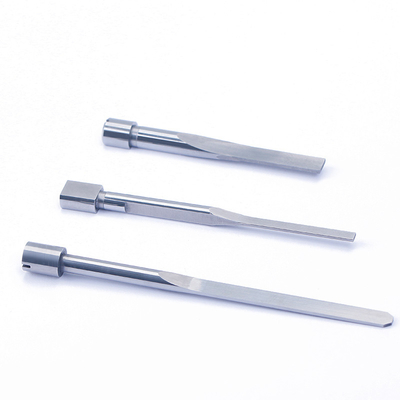

Precision Profile Grinding PG Punch Pins,Punch Die Components For Stamping Work



Application Field:
Optical profile grinding (PG) is a popular precision machining mode, mainly used to process key parts in precision equipment such as punch dies components and punch mold, and is suitable for forming and grinding of high-hardness materials.


Product Details--- PG Punch Pins

1.Surface Roughness:RZ~~0.2um / F1.0mm/min

2.Accuracy: ±0.001mm

3.Customization: Absolutely customization. There is no standard stock for this series of products, and only non-standard orders are accepted. Please attach CAD drawings/3D drawings to your inquiry, thank you.

4.Suitable Material:Tungsten carbide,ceramic and HSS etc, properties as below:

Material Material Properties
carbide: Cemented carbide is a powder metallurgical composite consisting of one more hard
material phases (e.g. tungsten carbide) and a binding material (e.g. cobalt). It is an extremely hard material, characterised by high wear resistance an thermal stability. It is used in various fields that require tools or components to be particularly wear-resistant.Compared to die steel, it is more difficult to machine and has a higher material cost, but its service life is often several times longer than that of die steel.
ceramic: Ceramic materials have good high temperature resistance and play a decisive role in high temperature applications in the continuous operating temperature range of 180 °C to more than 1200 °C. Compared to metallic materials, oxide ceramics are considered to be resistant to chemical attack, especially in acid and alkaline solutions. Common include alumina, zirconia, silicon carbide, silicon nitride ceramics
HSS: High speed steel with superior abrasion resistance and toughness for general use.It is mostly used in small batch production or fields with high requirements on material toughness.



Involve Machining Technology:

  • Machining Type:It needs to be processed with a plotter. The plotter depicts the graphics to be processed on the film, and the film is pasted on the projection screen and then corrected. The processor will perform the molding process according to the molding on the film.
  • Involve Production Technology: Cylindrical grinding, internal circular grinding, optical profile grinding, flat grinding, thread machining, middle speed wire cutting, low speed wire cutting, mirror discharge machining and so on.

Precision Profile Grinding PG Punch Pins Die Components For Stamping Work 0

Why choose us:

1.Advanced Technology: Complex shapes and various structures can be quickly formed and kept precise.
2.Efficient Processing: Short production cycle and rapid delivery, to ensure shipment schedule according to the delivery date.
3.Product quality: Consistent quality guaranteed.High accuracy, up to ±0.003mm.
4.Confidentiality system: Triple confidentiality measures to protect .If you need, we can sign a NDA(Non Disclosure Agreement), proofing more assured.
5.High-end and fully equipped: Outstanding processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products .

Kinyet focuses on tungsten relevant material research and development all the time. Through constantly introducing new technology and increase investing on high-end production equipment, Kinyet is able to offer molds solution with high-quality-price-ratio, include high precision,higher tooling life and cost effective etc. Now Kinyet is merged with Drow. With this powerful combination, believe we will create more excellent products for consumer in the future!

Precision Profile Grinding PG Punch Pins Die Components For Stamping Work 1


Quality Criteria
1.Wear Resistance

2.Precision.
3.Corrosion Resistance
4.Impact Strength

5.Toughness

6.Modulus of elasticity,Rigidity

7.Transverse Rupture Strength. Etc.


FAQ

Q1:Do you produce special punch mould or punch die components?
A: Yes,we specialize in customized mold fabricate and translate the most complex punch dies idea into reality, punch mold components manufactured by us are designed and customized for various demanding applications and variety materials!
Q2:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q5:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
