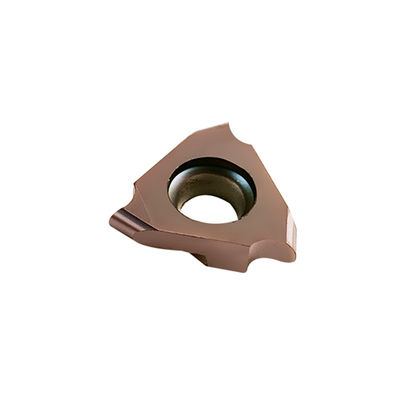

Drow TGF32 Carbide Grooving Insert 0.75mm CW High Accuracy

10pcs
MOQ
negotiable
Price
Drow TGF32 Carbide Grooving Insert 0.75mm CW High Accuracy
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: TGF32 / GTMX32-075R VT Series
Customized Support: OEM,ODM
Standard: Kyocera, NTK
Product Type: CNC Tool Parts,Carbide Grooving Inserts
Material: 100% Virgin Tungsten Carbide
Hardness: HRA 91.3~92.3
Precision: ±0.005mm
Dimensions: CW0.33~2.50mm.CDX0.8~2.50mm.RE0.05~0.10mm.
Holder: KTGF R/L, S...KTGF R/L, GTT R/L, NGT... R/L Etc
Coating: To Be Defined Per Your Different Demands And Application
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Usage: Metal Cutting,Grooving
Compatible Machine: CNC Lathes, Centering Machines Etc
Highlight:

Drow TGF32 carbide grooving insert

,

0.75mm CW grooving insert

,

high accuracy carbide insert
Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: TGF32 / GTMX32-075R VT Series
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description
TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy
High Accuracy Carbide Grooving Inserts For CNC Lathe

The GTMH32-VT series of carbide grooving inserts are designed for turning and grooving operations on lathe and CNC machines, available in various shapes and cutting angles.

Production Standard

Insert size details can be customized according to customer requirements, conforming to industry standards including Kyocera TGF32 series and NTK's GTM32, GTMX32, GTMH32 series.

  • TGF32: Kyocera TGF32 series, our standard production reference
  • GTMH32: NTK series with similar specifications to TGF32
  • VT: Sub-series designation
  • 075R: Specification and cutting orientation identifier
Product Details - GTMH32-VT
  • Material: 100% original carbide powder for superior wear resistance and toughness
  • Dimensions: CW: 0.33-2.50mm | CDX: 0.8-2.50mm | RE: 0.05-0.10mm
  • Coating: Advanced coating technology for corrosion and wear resistance
  • Grinding: High smoothness surface with quality cutting edges
  • Fit: Precise edge strips for vibration-free operation
  • Materials: Uncoated for aluminum/non-ferrous; Coated for steel/iron alloys
  • Customization: Available per customer specifications with CAD/3D drawings
Product Features
Drow TGF32 Carbide Grooving Insert 0.75mm CW High Accuracy 0
  • Chamfered and tip-arc processed cutting edges for protection and smooth surfaces
  • High-performance composite coating for hard, smooth surfaces
  • Professional chip-breaker design for optimal cutting performance
  • Precise dimensions with low tolerance for perfect holder fit
  • European-sourced base material for oxidation and wear resistance
  • Custom designs available for dimensions, coating, chip-breaker, and material grade
Product Specification
Drow TGF32 Carbide Grooving Insert 0.75mm CW High Accuracy 1
Part Number Dimensions (mm) Applicable Tool Holders
TGF32 R/L CW: 0.33-2.50
CDX: 0.8-2.5
RE: 0.05-0.10		 KTGF R/L S...
KTGF R/L GTT R/L NGT... R/L

Note: Standard sizes shown; custom dimensions available per customer requirements.

Production Process
  • Sintering of 100% original carbide powder
  • Flat surface grinding
  • Surrounding surface grinding
  • Cutting edge creation
  • Chamfering and tip-arc processing
  • Composite coating application
Quality Inspection
  • Visual inspection by experienced staff
  • Microscope examination
  • Projector detection
  • ZOLLER detection
  • German forging difference process detection
Drow TGF32 Carbide Grooving Insert 0.75mm CW High Accuracy 2
Why Choose Us
  • Advanced technology for complex surface accuracy
  • Short production cycles for timely delivery
  • High precision up to 0.005-0.001mm
  • Triple confidentiality measures for design protection
  • Full equipment with multiple production lines
  • Cost-effective pricing for competitive products
Frequently Asked Questions
Q: Is confidentiality possible for cooperation?
A: Yes, we implement strict confidentiality measures including NDAs to protect all customer information.
Q: What are your payment terms?
A: 30% deposit via T/T, with 70% balance before delivery after product photos approval.
Q: How is product quality ensured?
A: 100% inspection for first batches, with material testing and physical property verification before shipping.
Q: Do you accept sample orders?
A: Yes, MOQ of one piece for samples with 2-3 day lead time; negotiable for special requirements.
Q: Are you a manufacturer?
A: We are a professional manufacturer with decades of experience in precision hardware tools, offering factory-direct pricing.
