Name: TGF32R/L 100 010 Carbide Grooving Inserts 1.0mm CW for CNC Lathes
Brand: Dongguan Drow Precision Alloy Co., Ltd.
SKU: TGF32R/L 100 010
Price: 3.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand Name: Drow

Model Number: TGF32R/L 100 010

Customized Support: OEM,ODM

Standard: Kyocera, NTK

Product Type: Carbide Grooving Inserts,CNC Tool Parts

Material: 100% Virgin Tungsten Carbide

Coating: To Be Defined Per Your Different Demands And Application

Hardness: HRA 91.3~92.3

Precision: ±0.005mm

Dimensions: CW0.33~2.50mm.CDX0.8~2.50mm.RE0.05~0.10mm.

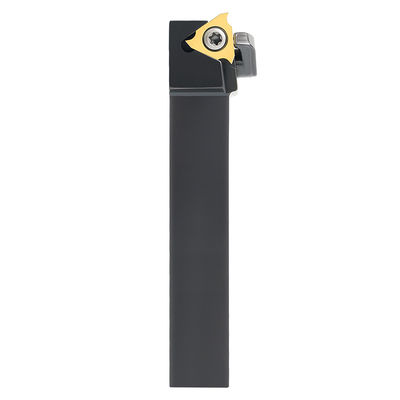

Holder: KTGF R/L, S...KTGF R/L, GTT R/L, NGT... R/L Etc

Usage: Metal Cutting,Grooving

Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic

Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron

Compatible Machine: CNC Lathes, Centering Machines, Cutter Arranging Machine Skateboard Lathes, Turret Lathes And Other Longitudinal Lathes

Highlight:

carbide grooving inserts 1.0mm CW

CNC lathe grooving inserts TGF32R

carbide inserts with warranty

Basic Infomation

Place of Origin: Dongguan,China

Brand Name: Drow

Certification: ISO9001

Model Number: TGF32R/L 100 010

Payment & Shipping Terms

Packaging Details: 10 pcs in a box, 100 boxes in a carton

Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated

Payment Terms: T/T etc

Supply Ability: 100*1000 pcs/month

Gallery

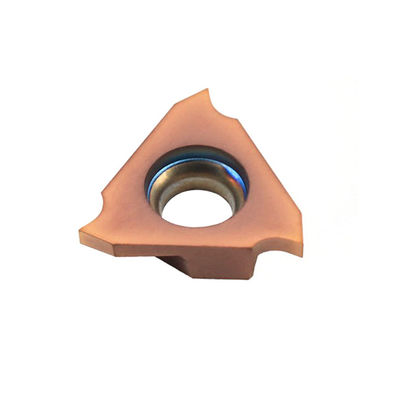

TGF32R/L 100 010 Carbide Grooving Inserts 1.0mm CW for CNC Lathes

Product Description

TGF32R/L 100 010 Durable Tungsten Carbide Grooving Inserts For CNC Machine Holder

Product Overview

The TGF32R/L 100 010 is a series of high-performance carbide grooving inserts designed for turning and grooving operations on lathe and CNC machines. These inserts are available in various shapes and cutting angles to suit different machining requirements.

Key Features

Premium Material: Made from 100% original carbide powder for exceptional wear resistance and toughness
Precision Dimensions: CW: 0.33-2.50mm | CDX: 0.8-2.50mm | RE: 0.05-0.10mm
Advanced Coating: Customizable surface treatments for optimal corrosion and wear resistance
Superior Finish: Fine grinding process ensures high surface smoothness and cutting edge quality
Perfect Fit: Accurate edge strips minimize micro-vibration during operation
Wide Material Compatibility: Suitable for aluminum, non-ferrous metals, carbon steel, alloy steel, and more
Custom Solutions: Available in standard sizes or customized to your specifications

Technical Advantages

Chamfered cutting edge with tip-arc processing for edge protection and smooth workpiece finish
High-performance composite coating for ultra-hard, smooth surfaces
Efficient chip-breaker design for optimal cutting performance
Precision dimensions ensure perfect holder fit and vibration reduction
European-sourced base material with superior oxidation resistance

Product Specifications

Part Number	Dimensions (mm)	Applicable Tool Holders
TGF32 R/L	CW: 0.33 \| CDX: 0.8 \| RE: 0.05	KTGF R/L S... KTGF R/L GTT R/L NGT... R/L
	CW: 0.50 \| CDX: 1.2 \| RE: 0.05
	CW: 0.75 \| CDX: 2.0 \| RE: 0.1
	CW: 0.95
	CW: 1.00
	CW: 1.20
	CW: 1.25
	CW: 1.40
	CW: 1.45
	CW: 1.50
	CW: 1.75
	CW: 2.00 \| CDX: 2.5
CW: 2.50

Note: Standard sizes shown above. Custom dimensions available upon request, compatible with Kyocera TGF32 series and NTK's GTM32, GTMX32, GTMH32 series.

Manufacturing Process

Sintering with 100% original carbide powder
Flat grinding machining
Surrounding grinding machining
Cutting edge creation
Chamfering and tip-arc processing
Composite coating application

Quality Assurance

Consistent performance with excellent impact resistance
Extended tool lifespan
Negative chamfer design for enhanced blade strength
Smooth cutting performance

Frequently Asked Questions

Q1: Do you produce special cutting inserts or tools?

A: Yes, we specialize in customized cutter fabrication and can translate complex cutting requirements into practical solutions for various materials and applications.

Q2: Is confidentiality guaranteed for cooperative projects?

A: Absolutely. All company information, drawings, and purchase details remain confidential. We can sign a Non-Disclosure Agreement (NDA) upon request.

Q3: What are your payment terms?

A: Standard terms are 30% deposit via T/T with 70% balance paid before delivery. We provide product and packaging photos before final payment.

Q4: How are products packaged?

A: Standard packaging includes shockproof plastic boxes within cartons. Custom packaging solutions available based on product requirements.

Q5: Do you accept customization requests?

A: Yes, we offer both OEM and ODM services with support from our professional R&D team.

Q6: What delivery methods are available?

A: We provide flexible shipping solutions tailored to customer requirements.
