Home /Products/Carbide Grooving Insert/TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder

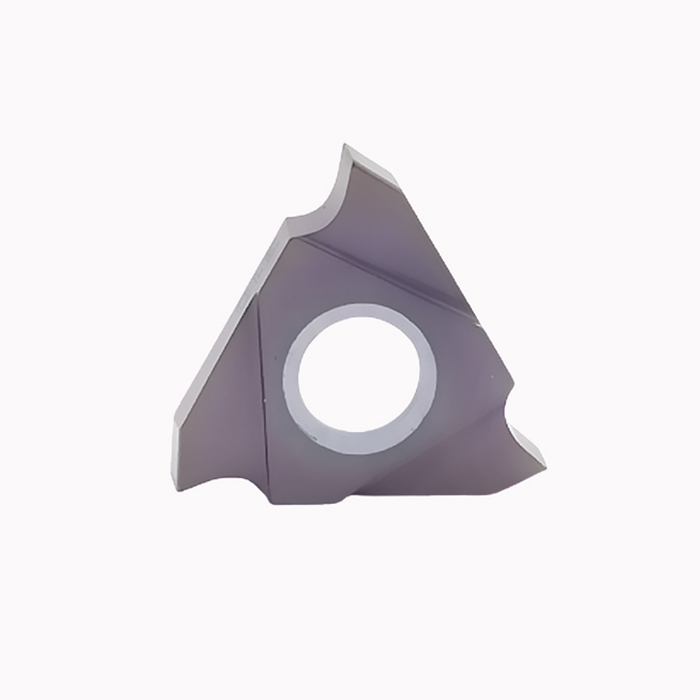

TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder

10pcs
MOQ
negotiable
Price
TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: TGF32R/L 250 010
Customized Support: OEM,ODM
Standard: Kyocera, NTK
Product Type: Carbide Grooving Inserts,CNC Tool Parts
Material: 100% Virgin Tungsten Carbide
Coating: To Be Defined Per Your Different Demands And Application
Hardness: HRA 91.3~92.3
Precision: ±0.005mm
Dimensions: CW0.33~2.50mm.CDX0.8~2.50mm.RE0.05~0.10mm.
Holder: KTGF R/L, S...KTGF R/L, GTT R/L, NGT... R/L Etc
Usage: Metal Cutting,Grooving
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Compatible Machine: CNC Lathes, Centering Machines, Cutter Arranging Machine Skateboard Lathes, Turret Lathes And Other Longitudinal Lathes
Highlight:

carbide grooving inserts for CNC lathe

,

TGF32 parting inserts with warranty

,

CNC lathe grooving inserts carbide
Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: TGF32R/L 250 010
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description
TGF32 Carbide Grooving Inserts for CNC Lathe Holder
Application Field
The TGF32 series consists of carbide grooving inserts primarily designed for turning and grooving operations on both lathe and CNC machines. These inserts come in various shapes and cutting angles to suit different applications.
Production Standards
Insert sizes can be tailored to meet customer specifications, referencing standards such as:
  • TGF32: Popular series from Kyocera with specifications like "R250 010" indicating dimensions and cutting orientation.
  • GTMH(X)32: Well-regarded carbide insert series from NTK with similar specifications to TGF32.
Product Details — TGF32R250 010
  • Premium Material: Crafted from 100% original carbide powder for exceptional wear resistance and toughness.
  • Dimensions:
    • CW: 0.33~2.50 mm
    • CDX: 0.8~2.50 mm
    • RE: 0.05~0.10 mm
  • Advanced Coating: Customized coating technology for superior corrosion and wear resistance.
  • Precision Grinding Process: Finely polished surface ensures high smoothness and excellent cutting edge quality.
  • Optimal Fit: Precisely crafted insert edge strips minimize micro-vibration during machining.
  • Applicable Materials:
    • Uncoated inserts: Aluminum, non-ferrous metals, non-metallic materials
    • Coated inserts: Carbon steel, alloy steel, mold steel, hardened steel, ductile iron
  • Customization: Available for non-standard requirements with CAD or 3D drawings.
  • Established Production: Manufactured using high-end EU equipment.
Product Features

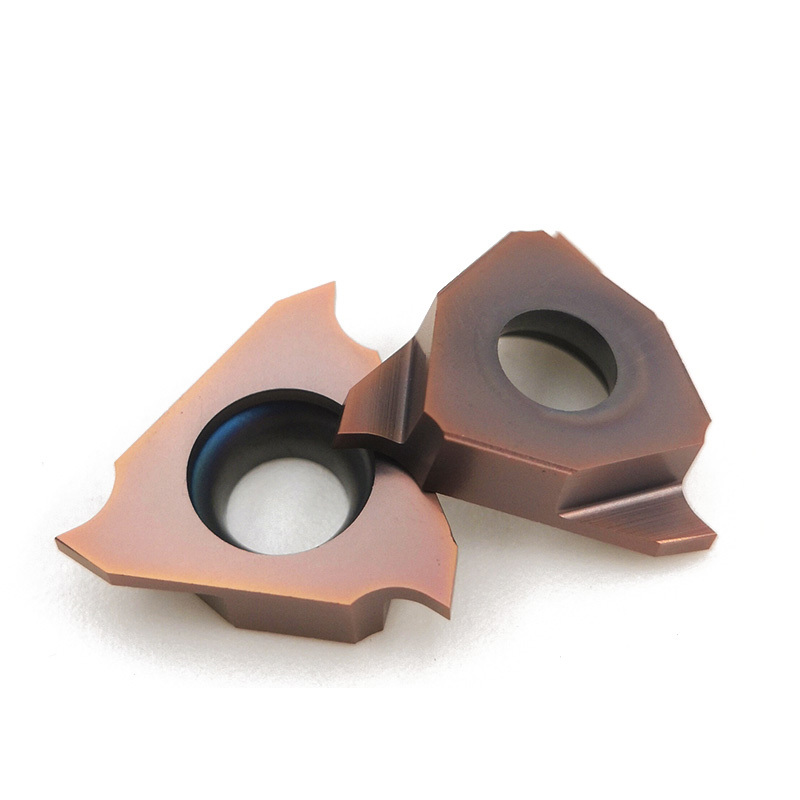

TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder 0
  1. Chamfering and tip-arc processing protects insert edges from fracture and ensures smooth workpiece surface.
  2. High performance composite coating provides super hard and smooth surface.
  3. Professional chip-breaker design for perfect cutting performance.
  4. Precise dimensions ensure perfect fit to tool holders, minimizing micro-vibration.
  5. European base material offers better oxidation and wear resistance.
  6. Customized designs available for dimensions, coating, chip-breaker, and material grade.
Product Specification

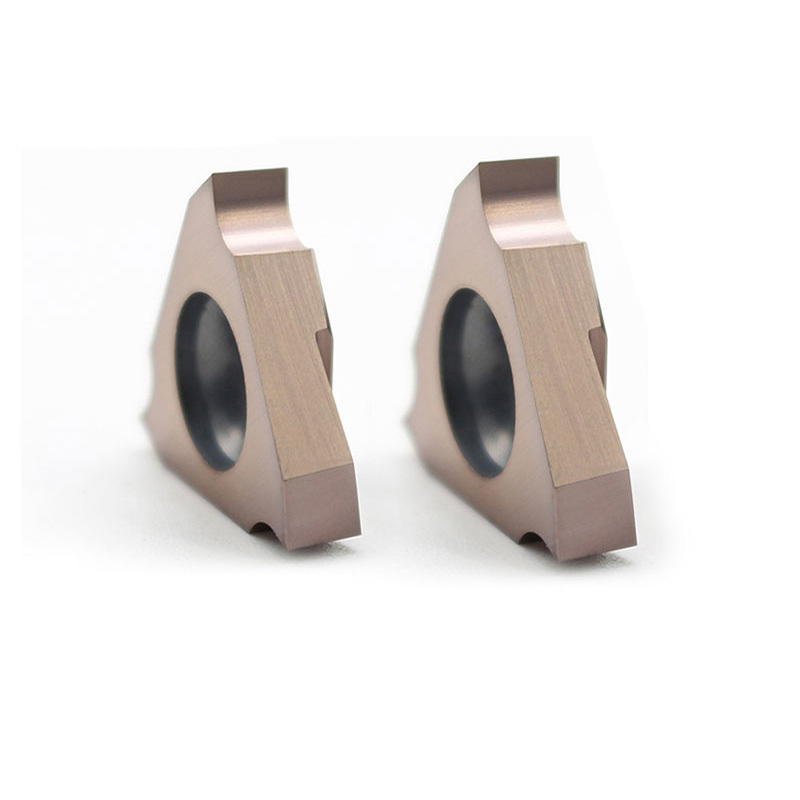

TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder 1
Part Number Dimensions(mm) Applicable Tool Holders
TGF32 R/L CW: 0.33
CDX: 0.8
RE: 0.05		 KTGF R/L S...
KTGF R/L GTT R/L
NGT... R/L
CW: 0.50
CDX: 1.2
RE: 0.05
CW: 0.75
CDX: 2.0
RE: 0.1
CW: 0.95
CW: 1.00
CW: 1.20
CW: 1.25
CW: 1.40
CW: 1.45
CW: 1.50
CW: 1.75
CW: 2.00
CDX: 2.5
TGF32 R/L CW: 2.50
The above are standard production sizes. Custom sizes available upon request, referencing Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series.
Production Process
  1. Sintering with 100% original carbide powder to create insert blank
  2. Flat grinding machining
  3. Surrounding grinding machining
  4. Cutting edge creation
  5. Chamfering and tip-arc processing
  6. Composite coating application
Quality Inspection

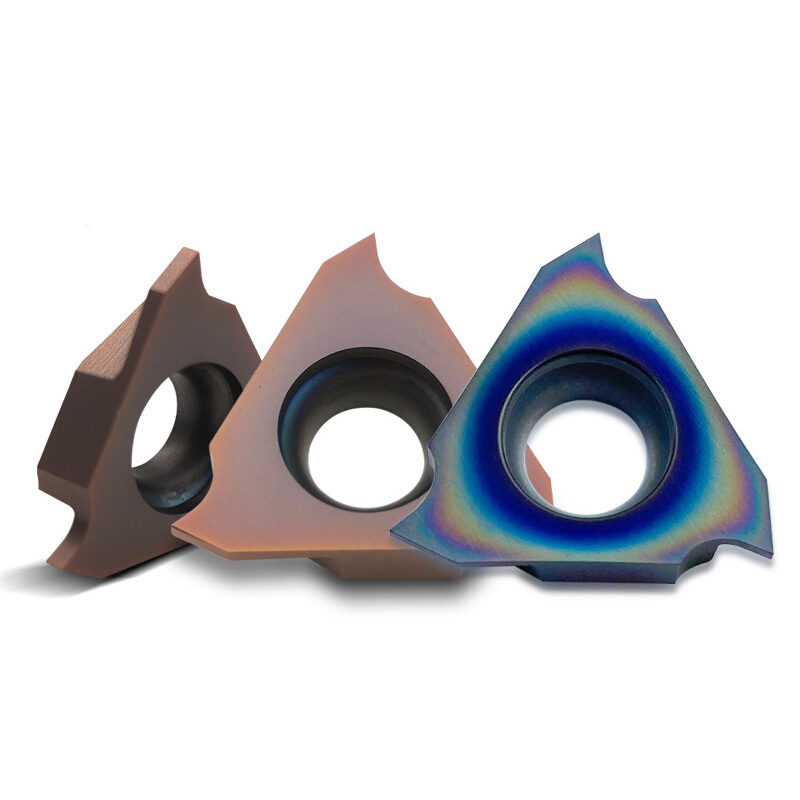

TGF32 Carbide Grooving Inserts parting and grooving inserts For CNC Lathe Holder 2
Why Choose Us
  • Technical innovation: Complex surfaces and functional structures can be quickly formed with accuracy.
  • Processing speed: Short production cycle ensures on-time delivery.
  • Consistent quality: Stable performance with good anti-impact resistance.
  • Cost-effective: Excellent tool lifetime.
  • Excellent design: Negative chamfer designation provides blade strength.
  • Well machining: Smooth cutting performance.
FAQ
Q1: Who are we?
A: Based in Guangdong Province, China since 2010, we serve Western Europe (10%), North America (20%), Eastern Europe (20%), Southeast Asia (40%), and Africa (10%) with 51-100 employees.
Q2: Can you send products to our Forwarder in China?
A: Yes, we can deliver to your designated forwarder in China.
Q3: What about the package?
A: Products are packed in shockproof plastic boxes within cartons. Custom packaging available based on product shapes.
Q4: Does your company accept customization?
A: Yes, OEM and ODM services available with our professional R&D team.
Q5: What's your delivery way?
A: We provide the best transportation service based on customer requirements.
