Highly Durable TGF32 Carbide Inserts For Turning Grooving Operations On CNC Machines
TGF32 Application Field

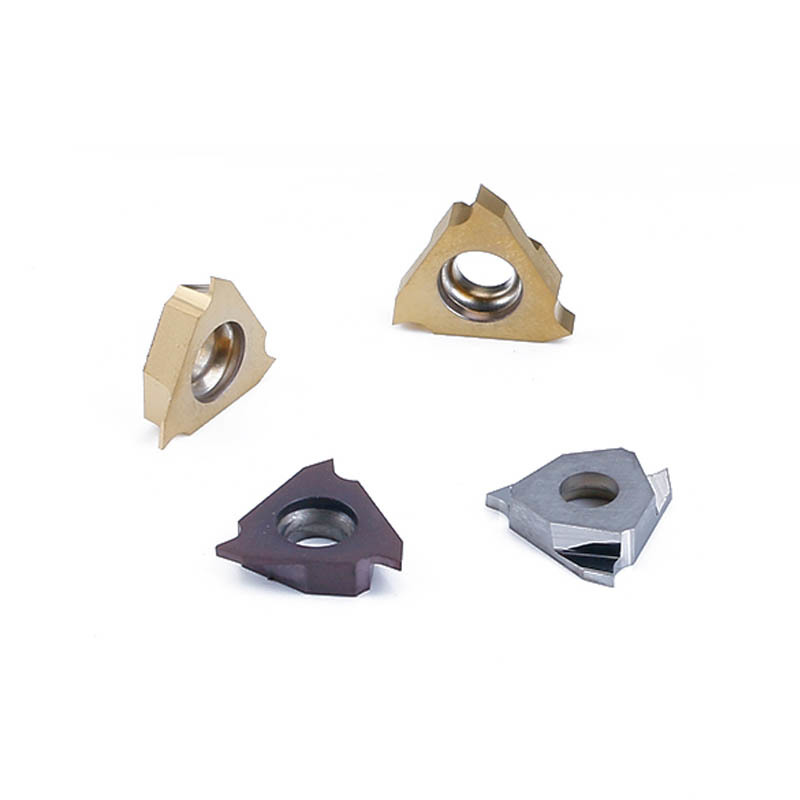

The TGF32 series comprises carbide grooving and cutting-off inserts, specifically designed for turning and grooving operations on lathes and CNC machines. These inserts are available in various shapes and cutting angles.
Inserts Production Standard
Insert sizes can be customized based on customer specifications and align with standards such as the Kyocera TGF32 series and NTK's GTM32, GTMX32, and GTMH32 series.
The TGF32 series is well-known for its carbide inserts. The designation “R100 010” indicates the specification and cutting orientation of the insert. Our Drow standard production sizes and stock specifications are primarily based on this series.
The GTMH(X)32 series, also from NTK, shares similar specifications with TGF32.
For specific details, please refer to the section below.

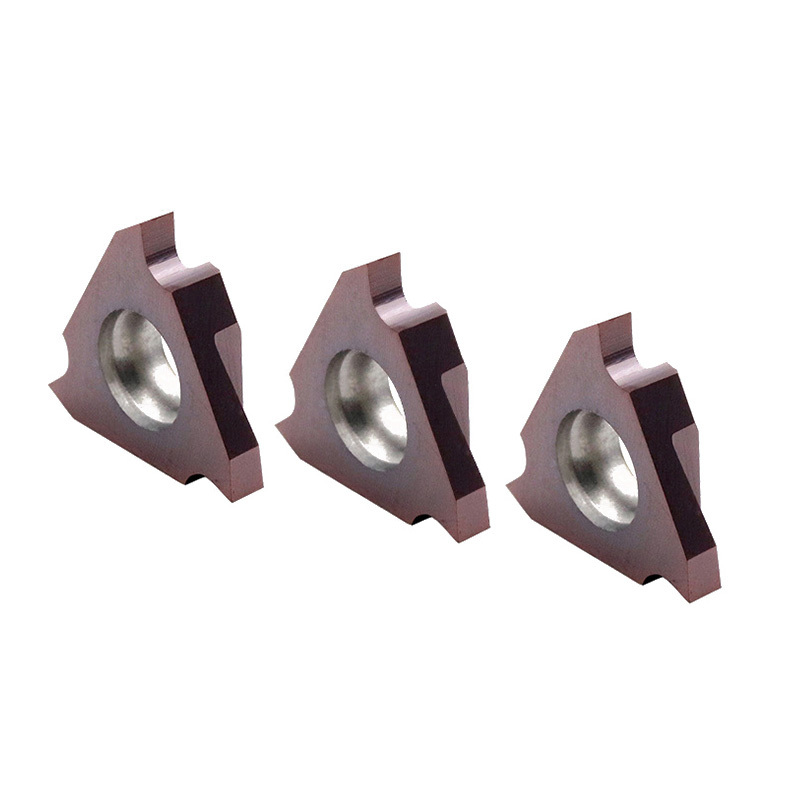

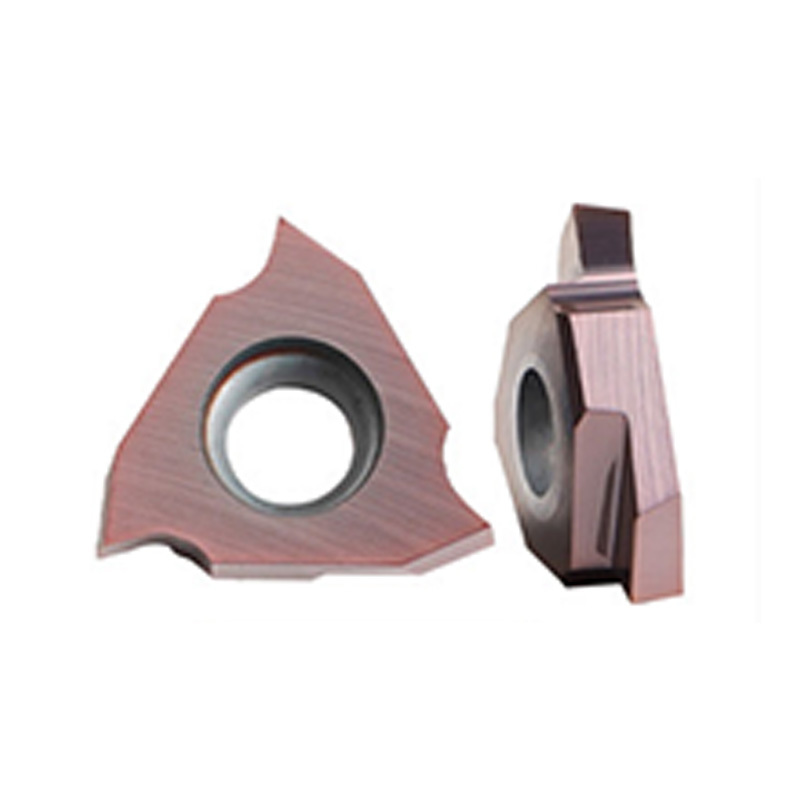

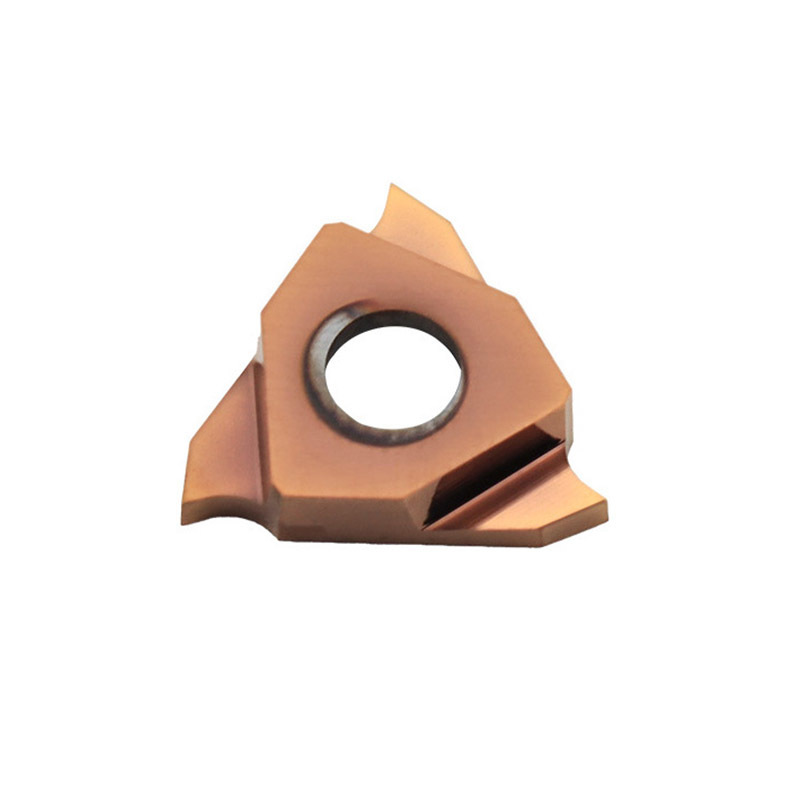

Product Details: TGF32R/L
-
Material Quality: Made from 100% original carbide powder, ensuring exceptional wear resistance and toughness.
-
Dimensions:
- Cutting Width (CW): 0.33–2.50 mm
- Cutting Diameter (CDX): 0.8–2.50 mm
- Edge Radius (RE): 0.05–0.10 mm
-
Coating Technology: Advanced coatings are tailored to your specific application, providing excellent corrosion and wear resistance.
-
Fine Grinding Process: The insert surface is finely ground for high smoothness and superior cutting edge quality, effectively minimizing friction and loss.
-
Perfect Fit: Designed with precise and smooth edge strips to reduce the likelihood of micro-vibration during machining.
-
Applicable Materials:
- Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
-
Customization: If our standard stock does not meet your needs, please attach CAD or 3D drawings for inquiries.
-
Production Quality: All inserts are manufactured and coated using high-end EU processing equipment. For more information, please refer to the “Entire Production Quick View” section.
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2. High performance composite coating support which can offer you super hard and smooth surface.
3. Professional and efficiency chip-breaker design, provides perfect cutting performance.
4. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
5.The base material imported from Europe has better oxidation resistance and wear resistance.
6. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number |
Dimensions(mm) |
Applicable
Tool Holders |
| CW |
CDX |
RE |
| TGF32 R/L |
033-005 |
0.33 |
0.8 |
0.05 |
KTGF R/L S...KTGF R/L GTT R/L NGT... R/L |
| 050-005 |
0.50 |
1.2 |
0.05 |
| 075-010 |
0.75 |
2.0 |
0.1 |
| 095-010 |
0.95 |
| 100-010 |
1.00 |
| 120-010 |
1.20 |
| 125-010 |
1.25 |
| 140-010 |
1.40 |
| 145-010 |
1.45 |
| 150-010 |
1.50 |
| 175-010 |
1.75 |
| 200-010 |
2.00 |
2.5 |
| 250-010 |
2.50 |
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc. |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1: Are insert samples available ?
A: We provide free sample,the freight needs to be paid by the buyer
Q2: Can we get a discount if our ordered quantity is big enough ?
A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
