Customizable TBP-A Carbide Turning Inserts for Precision Metalworking
TBPA Application Field
The TBPA is a widely recognized type of CNC carbide back turning insert. It is primarily used for turning and cutting operations on CNC lathes and machines, available in various shapes and cutting angles.
Production Standard
This series of inserts primarily references the NTK TBPA series standards. Size details can be customized according to customer requirements. The TBPA series is part of the well-known NTK lineup of carbide back turning inserts. Our Drow standard production sizes and stock specifications are aligned with this NTK series.
For specific information, please refer to the “Product Specification” section below.

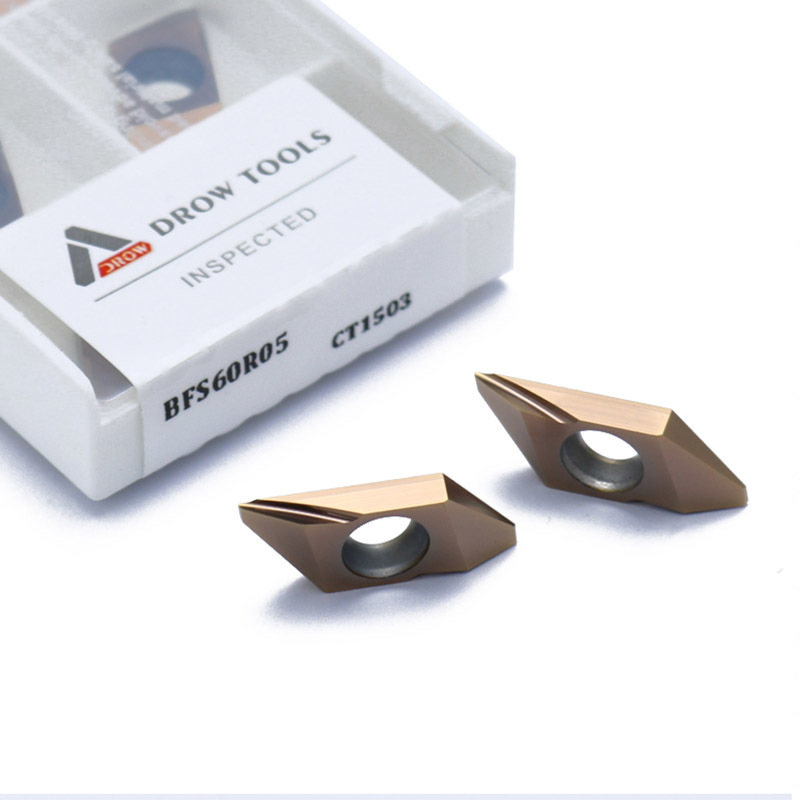

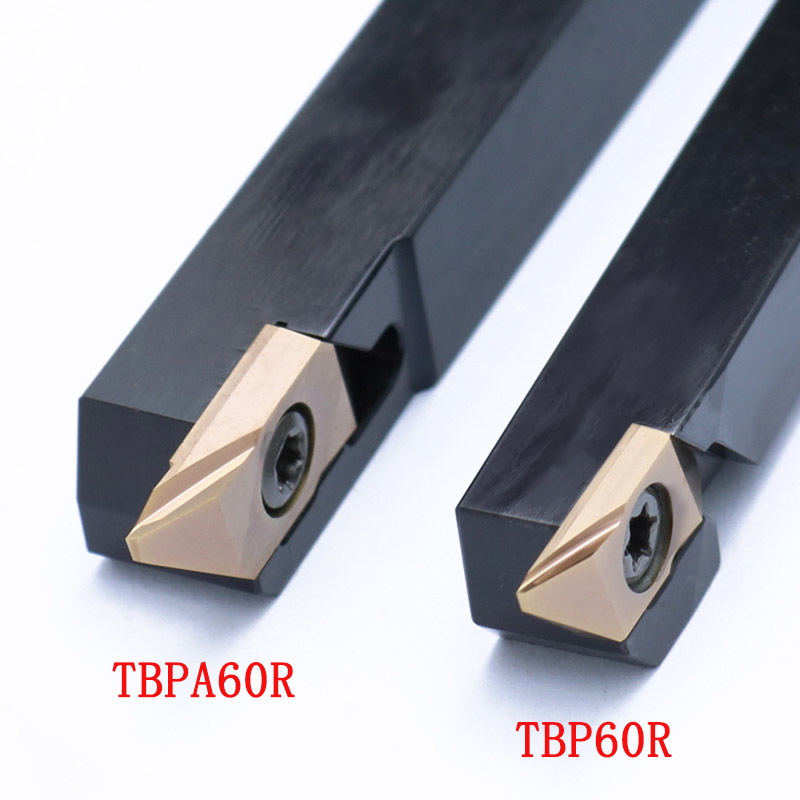

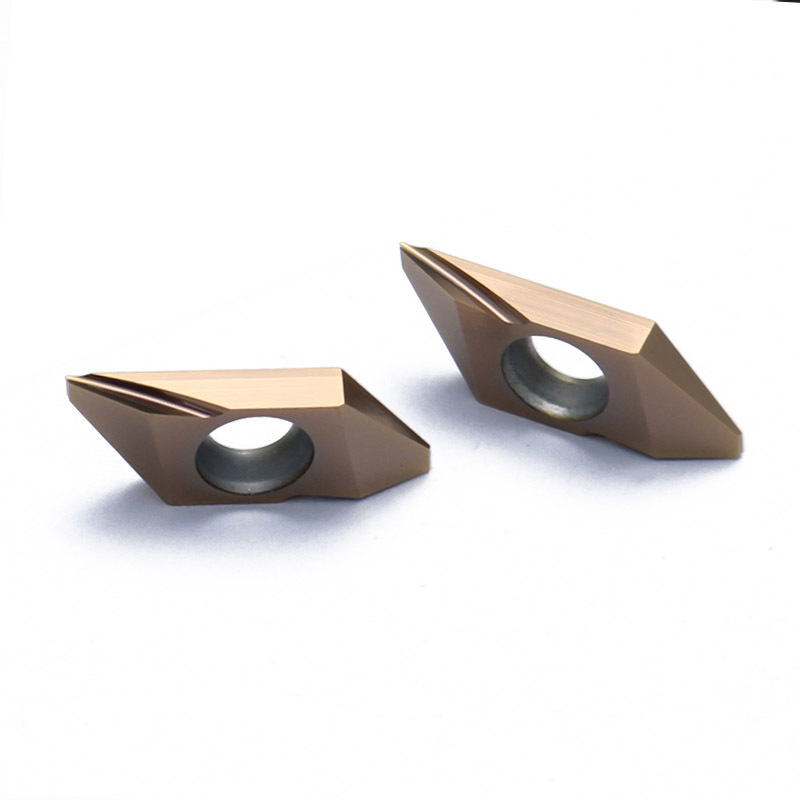

Product Details: TBP60R/TBPA60R
-
Material Quality: Manufactured from 100% original carbide powder, ensuring excellent wear resistance and durability.
-
Dimensions:
- Effective Length (a): 4.5 or 6.3 mm
- Angle (θ): 60°
- Nose Radius (γε): 0–0.18 mm
-
Coating Technology: Advanced coatings tailored to your application, enhancing corrosion and wear resistance.
-
Fine Grinding Process: The insert surface achieves high smoothness and excellent cutting edge quality, minimizing cutting resistance and friction loss.
-
Perfect Fit: Accurately designed edge strips help reduce micro-vibration during processing.
-
Applicable Materials:

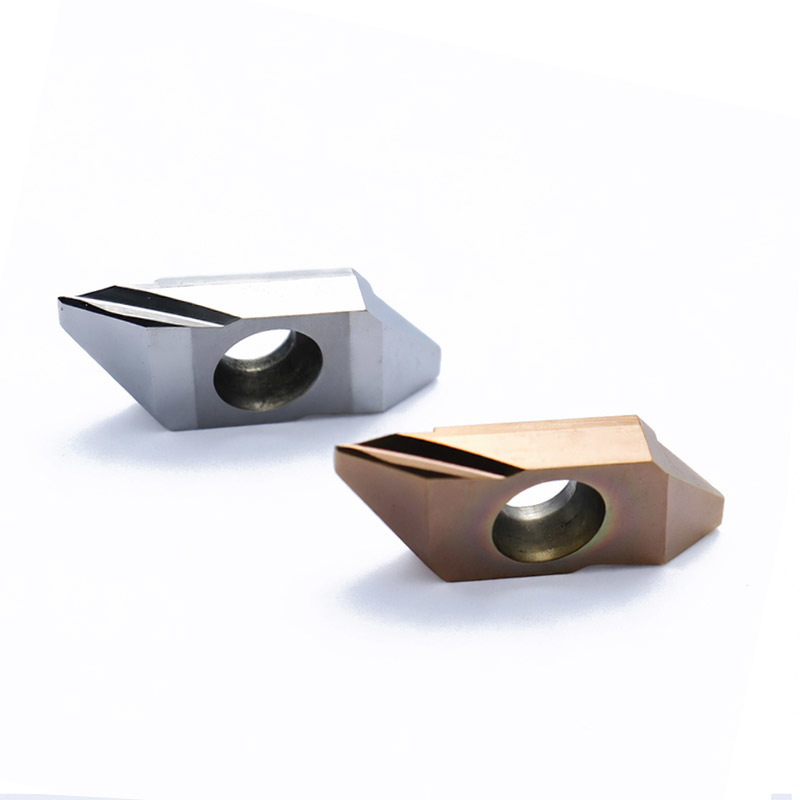

- Uncoated Inserts: Ideal for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Suitable for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
-
Customization: If standard stock does not meet your needs, please provide CAD or 3D drawings for inquiries.
-
Production Quality: All inserts are produced using high-end EU processing equipment. For more details, refer to the “Entire Production Quick View” section.
Product Features:
- Edge Protection: Chamfering, passivation treatment, and tip-arc processing enhance the durability of the cutting edge, preventing fractures and ensuring a smooth workpiece finish.
- High-Performance Coating: Composite coatings provide a super hard and smooth surface, optimizing machining efficiency.
- Efficient Chip-Breaker Design: Engineered for optimal cutting performance across various applications.
- Precision Engineering: High accuracy and burr-free dimensions ensure a perfect fit in tool holders, minimizing micro-vibration during operation.
- Superior Material: Base materials imported from Europe offer enhanced oxidation and wear resistance.
- Custom Insert Options: Available in various dimensions, coatings, chip-breakers, and material grades.
Carbide inserts produced by We Drow ensure efficient machining and extended tool life, receiving positive feedback worldwide.
Product Specification:
| Deseription |
Dimension(mm) |
| θ |
γε |
Effective Length a(mm) |
Cutting depth(mm) |
| TBPA_ Series N |
60FR/L VB |
60° |
0.00 |
4.5 |
5.3 |
| 60FR/L PB10 |
60° |
0.10 |
4.5 |
5.3 |
| 60FR/L 10M |
60° |
0.08 |
4.5 |
5.3 |
| 55FR/L PB10M |
60° |
0.08 |
4.5 |
5.3 |
| 55FR/L PB120M |
60° |
0.18 |
4.5 |
5.3 |
| TBPA_ Series V |
60FR/L V |
60° |
0.00 |
6.3 |
6.8 |
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's TBPA series, etc. |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
1.Checked carefully by experienced staff.
2.Microscope check.
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1: Are insert samples available ?
A: We provide free sample. Kindly note that the freight needs to be paid by our customers.
Q2: Can we get a discount if our ordered quantity is big enough ?
A: Yes. If your ordered quantity is big enough , we can offer you our best price and will give you a discount.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch. Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: What's your delivery way?
A: We will provide the best transportation service according to the requirements of our customers.
Q5: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q7: what else can you buy from us?
A: Other insert series,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds
Q8: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.
