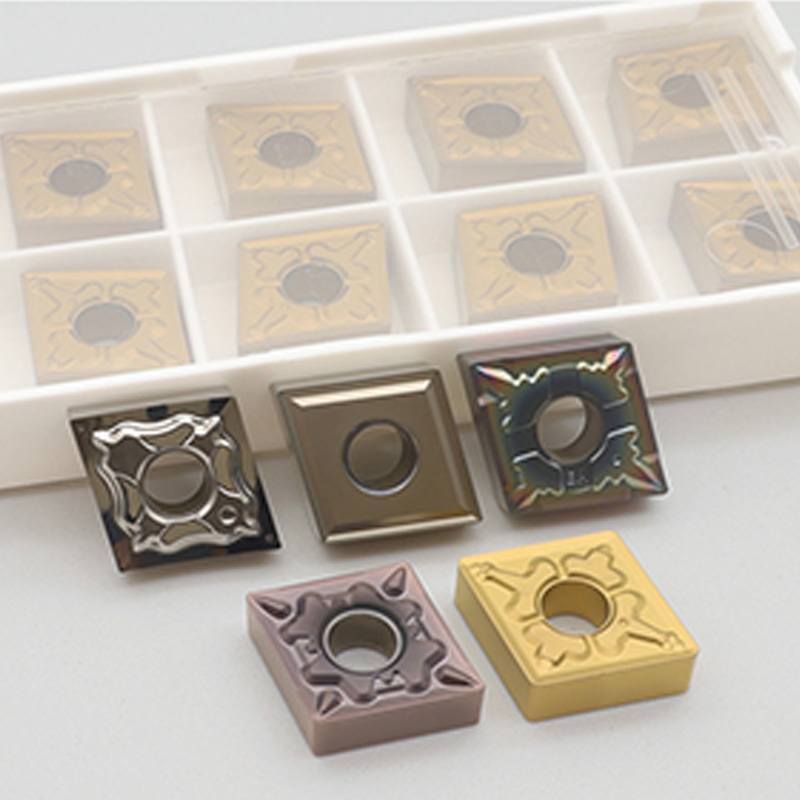

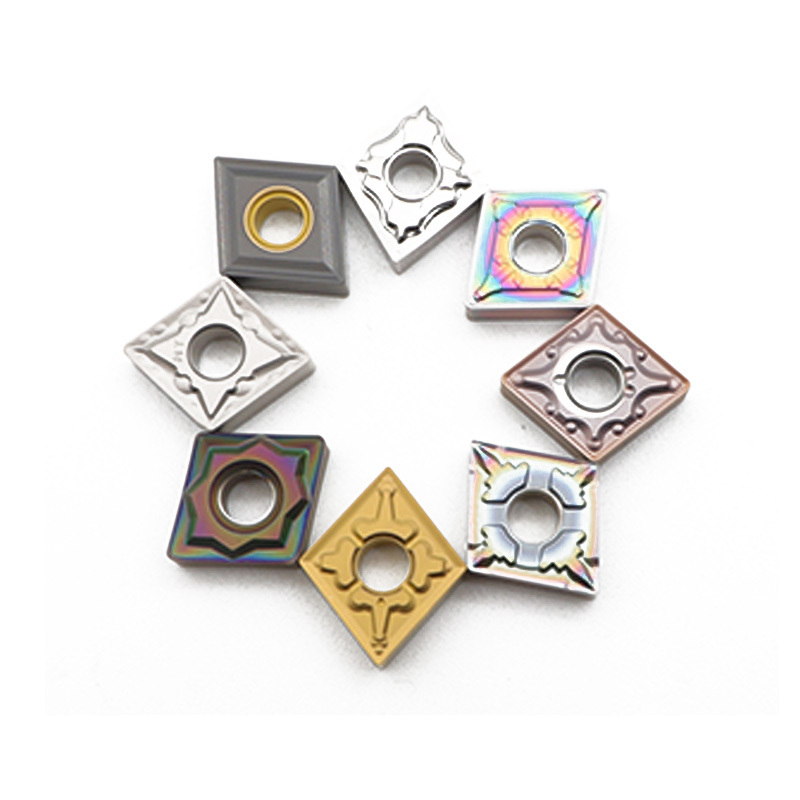

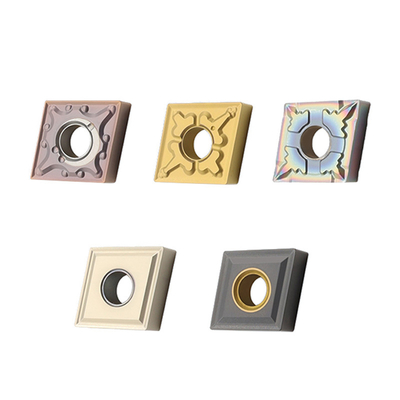

Indexable CNMG120404-EF Carbide Turning Inserts for Nonferrous Materials

CNMG Application Field

The CNMG120404-EF is a type of CNC carbide turning indexable insert, primarily used for external turning and cutting operations on CNC lathes and machines. For specific dimensions, please refer to the “ISO Turning Inserts Naming Rules.” These carbide inserts are replaceable and typically indexable, made from cemented carbide, and suitable for machining steels, cast iron, high-temperature alloys, and nonferrous materials. They enable faster machining and provide superior finishes on metal parts, available in various radii for finishing, general purpose, and rough turning.

ISO Turning Inserts Naming Rules:



Product Details: CNMG120404-EF

• Material Quality: Crafted from 100% original carbide powder, ensuring excellent wear resistance and toughness.

• Dimensions: Compliant with ISO standard specifications.

• Coating Technology: Advanced PVD or CVD coatings tailored to your application, enhancing corrosion and wear resistance.

• Shape: 80° trigon inserts, double-sided design.

• Applicable Materials: Suitable for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: This insert conforms to ISO standards; customization options are not available.

• Production Excellence: Manufactured using high-end processing equipment from the EU.

Product Features:

1. Edge Protection: Passivation treatment and tip-arc processing enhance the durability of the cutting edge, reducing the risk of fractures and ensuring a smooth workpiece surface.
2. High-Performance Coating: Composite coatings provide a super hard and smooth surface, optimizing machining efficiency.
3. Versatile Chip-Breakers: Multiple professional chip-breaker types are available, ensuring excellent cutting performance across various machining applications.
4. Precision Engineering: High accuracy and burr-free dimensions ensure a perfect fit in tool holders, minimizing micro-vibration during operation.
5. Superior Material: Base material sourced from Europe offers enhanced oxidation and wear resistance.
6. Custom Insert Options: Available in various dimensions, coatings, chip-breakers, and material grades.

Carbide inserts produced by We Drow deliver efficient machining and long tool life, receiving positive feedback worldwide.

Product Specifications

Note: The sizes and chip-breakers listed are standard production specifications. Customization can be discussed based on customer requirements.

Quality Inspection

1. Thoroughly checked by experienced personnel.
2. Microscope examination for precision verification.
3. Projector detection for dimensional accuracy.
4. German forging process differentiation checks.
5. Verification of edge passivation.


Why choose us:
1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .

FAQ
Q1:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: What else can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
Q5: Can we get a discount if our ordered quantity is big enough ?
A: Yes. If your ordered quantity is big enough , we can offer you our best price and will give you a discount.
Q6. Could you offer OEM and ODM service?
A:It’s okay , we have more than 10 years experience in OEM service.Our professional R&D team is dedicated to design products to fit various demands of customers. They can always offer the professional advice and solutions for you!
