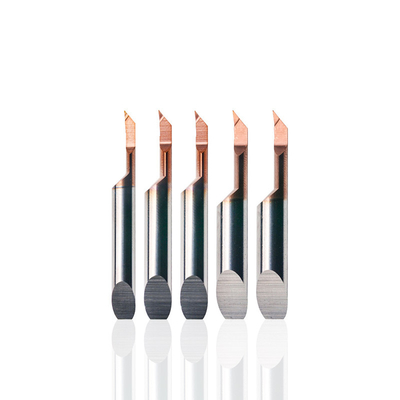

High Precision MFWR Carbide Boring Tools For Internal Spherical And End Face Profiling

1pcs
MOQ
negotiable , per the quantity and specification of order
Price
High Precision MFWR Carbide Boring Tools For Internal Spherical And End Face Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Material: 100% New Tungsten Carbide
Model Number: MFWR Inner Spherical And End Face Profiling Tool
Customized Support: OEM,ODM,OBM
Coating: To Be Defined Per Your Different Demands And Application
Accuracy: ±0.005mm
Flute Color: Bronze,matte
Flute Length: 8.0~15.0mm
Shank Diameter: 4.0~6.0mm
Shank Type: Rear End Tilt
Hardness: HRA 91-93.5
Tip Arc: R0.10
Usage: Inner Spherical And End Face Profiling And Boring
Workpiece Material: Steel,Stainless Steel,Cast Iron And So On
Controlling Mode: Micro Turning Machine,CNC Lathes Etc
Highlight:

High Precision Carbide Boring Tools

,

End Face Profiling Carbide Boring Tools

,

Internal Spherical Carbide Boring Tools

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: MFWR Inner Spherical and End Face Profiling Tool
Payment & Shipping Terms
Packaging Details: 1. Each tungsten steel boring tool comes with plastic tube, 10 pieces per set ; 2. Then packaged in carton with bubble films . Other package is available as your requirement
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

High Precision MFWR Carbide Boring Tools for Internal Spherical and End Face Profiling


Drow_Carbide_Boring_Tools_EN.pdf
Drow_Carbide_Boring_Tools_MD_EN.pdf

Application Field:

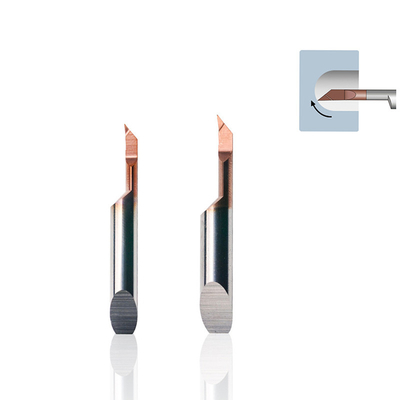

The MFWR is an internal profiling and boring tool primarily used for spherical and end face profiling and boring on micro CNC turning lathes. It features a rear-end tilt design, making it suitable for securely locking precise tool holders. Additionally, with advanced nano coatings on ultrafine carbide, this tool delivers a high-quality smooth machining surface and exceptional wear resistance.


Product Details--- MFWR Inner Spherical and End Face Profiling Tool

  • Tool Material: 100% virgin tungsten carbide.
  • Usage: Designed for inner face grooving and boring.
  • Hardness: HRA 91–93.5
  • Accuracy: ±0.005 mm
  • Coating: Customized based on your application. The smooth, fine surface of the coated carbide ensures an excellent surface finish.

Summary product information as below:



Brand Name: Drow
Model Number: MFWR Inner Spherical and End Face Profiling Tool
Customized support: OEM, ODM.
Standard: ISO
Product type: Solid carbide boring tiny tool
Material: Tungsten Carbide,100% new Material
Coating: To be defined per your different demands and application
Hardness: HRA 91~93.5
Flute length 8.0~15.0mm
Flute color: bronze,matte
Precision: ±0.005mm
Shank diameter: 4.0~6.0mm
Shank type rear end tilt
Tip arc: R0.10
Sample Order: Acceptable
Usage: Inner spherical and end face profiling and boring
Workpiece Material: Steel,Stainless steel,Cast iron and so on
Machining type: Semi-Finishing/Finishing


Product Features:

  • Versatile Use: Suitable for metal inner face grooving machining.
  • Time Efficiency: Eliminates the need for tool recalibration, reducing time costs and improving efficiency.
  • Integral Design: The boring tool features an integrally formed design, and the unique chip flute design minimizes chip buildup, enhancing processing efficiency.
  • Precision Grinding: The entire process utilizes a five-axis machine tool for precision grinding, ensuring high accuracy of the tool tip's r-angle and a smooth cutting edge, even under a 500x microscope.
  • Internal Cooling: The slotted design on the inclined position at the tail, along with a center water outlet cutter sleeve, enables efficient internal cooling during processing.
  • Stable Clamping: Solid carbide boring bars are precisely positioned into the adapter using a locating pin, while set screw clamps ensure increased stability for rigid clamping.
  • Easy Tool Change: Tools of the same type can be changed using the positioning pin, maintaining the same total extension length.

Product Specification:

High Precision MFWR Carbide Boring Tools For Internal Spherical And End Face Profiling 0

Model Minimum diameter of machining hole(mm)ΦA ΦD r L1 L2 F S JS25 AL25
MFWR0435L08R010-D-(C) 3.5 4 0.10 33 8 1.55 0.15
MFWR0445L10R010-D-(C) 4.5 4 0.10 35 10 1.95 0.25
MFWR0555L12R010-D-(C) 5.5 5 0.10 38 12 2.45 0.30
MFWR0665L15R010-D-(C) 6.5 6 0.10 40 15 2.95 0.35
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code


Why choose us:

  • Advanced Technology: Complex surfaces and functional structures can be rapidly formed while maintaining accuracy.
  • Short Machining Period: A brief production cycle ensures timely delivery according to the agreed schedule.
  • Crowned Product Quality: High quality is guaranteed, with precision levels reaching up to 0.005–0.001 mm.
  • Confidentiality System: Our triple confidentiality measures protect customers' private designs, providing greater assurance during the proofing process.
  • Fully Equipped: We boast excellent processing capacity with multiple production lines, advanced machinery, and professional supporting facilities.
  • Cost-Effective Solutions: Thoughtful design and material selection enable us to offer competitive pricing, helping customers obtain high-quality products at a lower cost.

Quality Inspection



1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding


FAQ


Q1:Do you produce special cutting tools?
A: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for various demanding applications and variety materials!
Q2:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q3:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5: what can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
Q6. Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q7: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.
Q8:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
