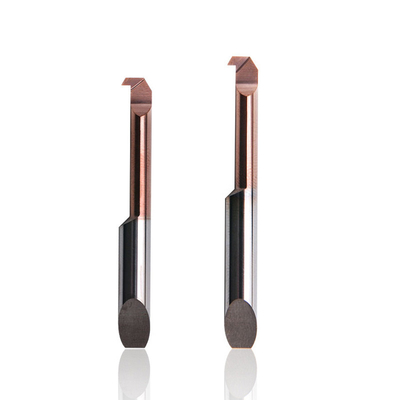

MBXR Reverse Mini Boring Tool For High Precision Internal Hole Turning On CNC Lathe

1pcs
MOQ
negotiable , per the quantity and specification of order
Price
MBXR Reverse Mini Boring Tool For High Precision Internal Hole Turning On CNC Lathe
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Material: 100% New Tungsten Carbide
Model Number: MBXR Internal Reverse Boring Cutter
Accuracy: ±0.005mm
Customized Support: OEM,ODM,OBM
Coating: To Be Defined Per Your Different Demands And Application
Flute Length: 16.0~25.0mm
Shank Diameter: 4.0~6.0mm
Shank Type: Rear End Tilt
Hardness: HRA 91-93.5
Tip Arc: R0.10
Usage: Inner Hole Reverse Boring Cutter
Workpiece Material: Steel,Stainless Steel,Cast Iron And So On
Controlling Mode: Micro Turning Machine,CNC Lathes Etc
Highlight:

MBXR Internal Hole Turning Boring Tool

,

High Precision Internal Hole Turning Tool

,

CNC Lathe Carbide Boring Tools

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: MBXR internal reverse boring cutter
Payment & Shipping Terms
Packaging Details: 1. Each tungsten steel boring tool comes with plastic tube, 10 pieces per set ; 2. Then packaged in carton with bubble films . Other package is available as your requirement
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T etc
Supply Ability: 10*1000 pcs/month
Product Description

MBXR Reverse Mini Boring Tool for High Precision Internal Hole Turning on CNC Lathe

Drow_Carbide_Boring_Tools_EN.pdf

Drow_Carbide_Boring_Tools_MD_EN.pdf


Application Field:


The MBXR is an internal reverse boring cutter, commonly used for back boring metal inner holes in mini CNC turning machines and lathes. Unlike the round shank MXR, the MBXR features a rear-end tilt design, making it ideal for securing into precision tool holders. Additionally, various advanced nano coatings applied to ultrafine carbide enhance the tool's performance, providing a highly smooth machining surface and exceptional wear resistance.



Product Details--- MBXR Reverse boring cutter

  • Tool Material: 100% virgin tungsten carbide.
  • Usage: Specifically designed for inner hole reverse boring.
  • Hardness: HRA 91–93.5
  • Accuracy: ±0.005 mm
  • Coating: Customized based on your application; the smooth, fine surface of the coated carbide ensures a high-quality finish.



Key Differences from MXR:
a. Features a rear end tilt, whereas the MXR has a round shank.
b. Offers different coating options.
c. Compatible with various tool holders.

Tool Production:

Our robust R&D capabilities and advanced equipment enable us to effectively meet your diverse requirements.


Product Features:



  • No Recalibration Required: Eliminates the need for tool recalibration, reducing time costs and enhancing efficiency.
  • Integral Design: The boring tool features an integrally formed design, and its unique chip flute minimizes chip buildup, improving processing efficiency.
  • Precision Grinding: The entire process employs a five-axis machine tool for precision grinding, ensuring high accuracy of the tool tip's r-angle. The cutting edge remains smooth even under 500x magnification.
  • Internal Cooling: The slotted design on the inclined tail, combined with a center water outlet in the cutter sleeve, facilitates effective internal cooling during processing.

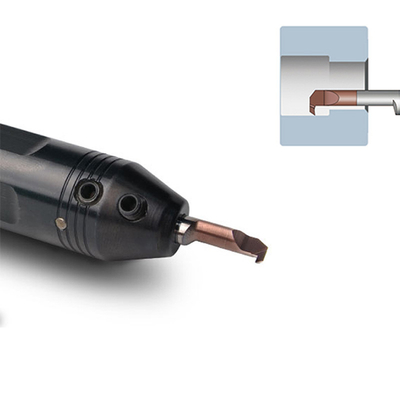

  • Stable Clamping: Solid carbide boring bars are precisely positioned in the adapter using a locating pin, while set screw clamps enhance stability for rigid clamping.
  • Easy Tool Change: Tools of the same type can be easily replaced using the positioning pin, maintaining a consistent total extension length.


Product Specification:

MBXR Reverse Mini Boring Tool For High Precision Internal Hole Turning On CNC Lathe 0

Model Minimum diameter of machining hole(mm)ΦA ΦD r L1 L2 F S JS25 AL25
MBXRO441L16R010-D-(C) 4.1 4 0.10 41 16 3.8 1.00
MBXR0551L20R010-D-(C) 5.1 5 0.10 45 20 4.8 1.30
MBXR0661L25R010-D-(C) 6.1 6 0.10 50 25 5.8 1.60
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code


Why choose us:

  • Advanced Technology: Complex surfaces and functional structures can be quickly and accurately formed.
  • Short Machining Period: We maintain a short production cycle to ensure on-time delivery according to specified deadlines.
  • Crowned Product Quality: High quality is guaranteed, with precision levels reaching up to 0.005-0.001 mm.
  • Confidentiality System: Our triple confidentiality measures protect customers' private designs, providing greater assurance during the proofing process.
  • Fully Equipped: We offer excellent processing capacity with multiple production lines, advanced equipment, and professional supporting facilities.
  • Cost-Effective Solutions: Our thoughtful design and material selection enable us to offer competitive pricing, helping customers obtain high-quality products at lower costs.

Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
FAQ
Q1:Do you produce special cutting tools?
A: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for various demanding applications and variety materials!
Q2:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q3:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5: what can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
