MBXR Reverse Boring Cutter For Metal Inner Hole Back Boring On Mini CNC Turning Machine Tools

1pcs
MOQ
negotiable , per the quantity and specification of order
Price
MBXR Reverse Boring Cutter For Metal Inner Hole Back Boring On Mini CNC Turning Machine Tools
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Material: 100% New Tungsten Carbide
Model Number: MBXR Internal Reverse Boring Cutter
Accuracy: ±0.005mm
Customized Support: OEM,ODM,OBM
Coating: To Be Defined Per Your Different Demands And Application
Flute Length: 16.0~25.0mm
Shank Diameter: 4.0~6.0mm
Shank Type: Rear End Tilt
Hardness: HRA 91-93.5
Tip Arc: R0.10
Usage: Inner Hole Reverse Boring Cutter
Workpiece Material: Steel,Stainless Steel,Cast Iron And So On
Controlling Mode: Micro Turning Machine,CNC Lathes Etc
Highlight:

Metal Inner Hole Boring Cutter

,

MBXR Reverse Boring Cutter

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: MBXR internal reverse boring cutter
Payment & Shipping Terms
Packaging Details: 1. Each tungsten steel boring tool comes with plastic tube, 10 pieces per set ; 2. Then packaged in carton with bubble films . Other package is available as your requirement
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T etc
Supply Ability: 10*1000 pcs/month
Product Description

MBXR Reverse Boring Cutter for Metal Inner Hole Back Boring on Mini CNC Turning Machine Tools

Drow_Carbide_Boring_Tools_EN.pdf
Drow_Carbide_Boring_Tools_MD_EN.pdf

Application Field:

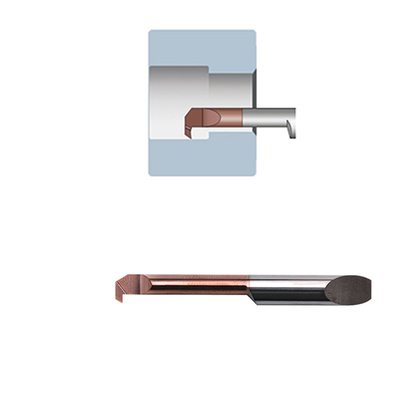

The MBXR is a specialized internal reverse boring cutter, commonly utilized in the metal inner hole back boring process of mini CNC turning machines or lathes. Unlike the round shank MXR, the MBXR features a rear-end tilt, making it suitable for precision locking in tool holders. Additionally, with its advanced nano-coating applied to ultrafine carbide, this tool delivers a high-quality smooth machining surface and exceptional wear resistance.


Product Details--- MBXR Reverse boring cutter

  • Tool Material: 100% virgin tungsten carbide
  • Usage: Inner hole reverse boring cutter
  • Hardness: HRA 91–93.5
  • Accuracy: ±0.005 mm
  • Coating: Customized based on your application. The smooth, fine surface of the coated carbide ensures excellent surface finish.
  • Key Differences from MXR:a. Rear end tilt, whereas MXR features a round shank.b. Different coating options.c. Compatible with various tool holders.
  • Tool Production: Our robust R&D capabilities and advanced equipment enable us to meet your diverse requirements efficiently.

Summary product information as below:



Brand Name: Drow
Model Number: MBXR internal reverse boring cutter
Customized support: OEM, ODM, OBM.
Standard: ISO
Product type: Solid carbide boring tiny tool
Material: Tungsten Carbide,100% new Material
Coating: To be defined per your different demands and application
Hardness: HRA 91~93.5
Flute length 16.0~25.0mm
Flute color: bronze,matte
Precision: ±0.005mm
Shank diameter: 4.0~6.0mm
Shank type rear end tilt
Tip arc: R0.10
Mainly Difference to MXR: a.Rear end tilt while MXR is round shank.
b.Different coating.
c. suitable for different tool holder.
Sample Order: Accepted
Usage: Inner hole reverse boring cutter
Workpiece Material: Steel,Stainless steel,Cast iron and so on
Machining type: Semi-Finishing/Finishing



Product Features:

  • No Recalibration Required: This feature reduces time costs and enhances efficiency.
  • Integral Construction: The boring tool is integrally formed, and its unique chip flute design minimizes chip buildup, improving processing efficiency.
  • Precision Grinding: The entire process utilizes a five-axis machine tool for precision grinding, ensuring high accuracy of the tool tip's r-angle. The cutting edge remains smooth even under 500x magnification.
  • Internal Cooling: The slotted design on the side of the inclined tail, combined with a center water outlet in the cutter sleeve, enables effective internal cooling during processing.

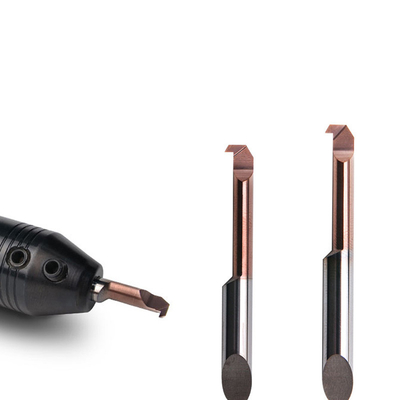

  • Stable Clamping: Solid carbide boring bars are precisely positioned in the adapter using a locating pin, while set screw clamps ensure increased stability for rigid clamping.
  • Easy Tool Change: Tools of the same type can be changed using the positioning pin, maintaining the same total extension length.


Product Specification:

MBXR Reverse Boring Cutter For Metal Inner Hole Back Boring On Mini CNC Turning Machine Tools 0

Model Minimum diameter of machining hole(mm)ΦA ΦD r L1 L2 F S JS25 AL25
MBXRO441L16R010-D-(C) 4.1 4 0.10 41 16 3.8 1.00
MBXR0551L20R010-D-(C) 5.1 5 0.10 45 20 4.8 1.30
MBXR0661L25R010-D-(C) 6.1 6 0.10 50 25 5.8 1.60
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code


Why choose us:

  • Advanced Technology: Complex surfaces and functional structures can be quickly and accurately formed.
  • Short Machining Period: We maintain a short production cycle to ensure timely delivery according to specified deadlines.
  • Crowned Product Quality: High quality is guaranteed, with precision levels reaching up to 0.005-0.001 mm.
  • Confidentiality System: Our triple confidentiality measures protect customers' private designs, providing greater assurance in the proofing process.
  • Fully Equipped: We boast excellent processing capacity with multiple production lines, advanced equipment, and professional supporting facilities.
  • Cost-Effective Solutions: Our reasonable design and material selection allow us to offer competitive pricing, helping customers obtain high-quality products at lower costs.

Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
