Application Field:

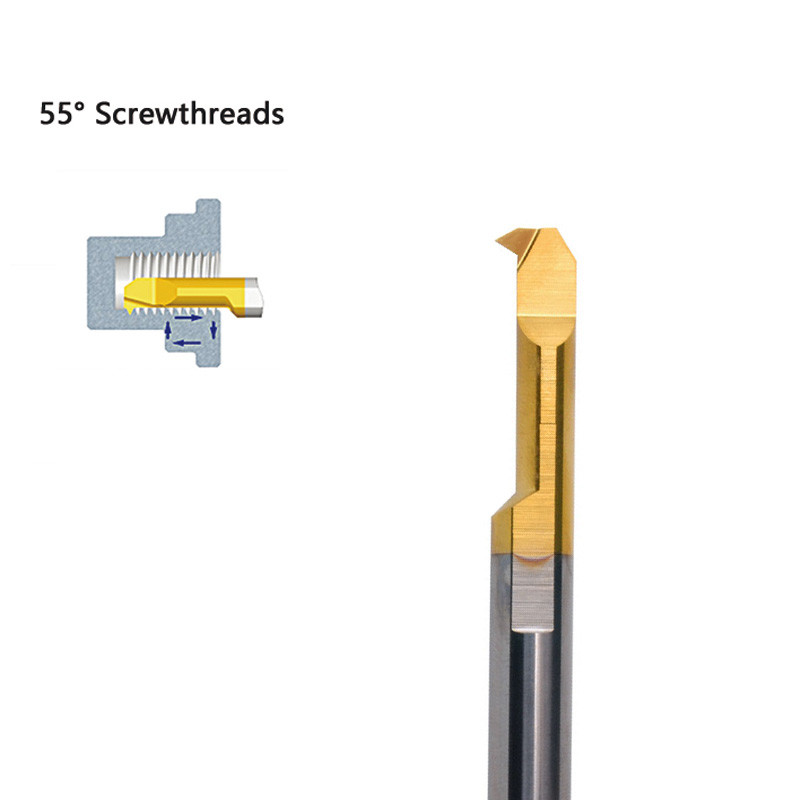

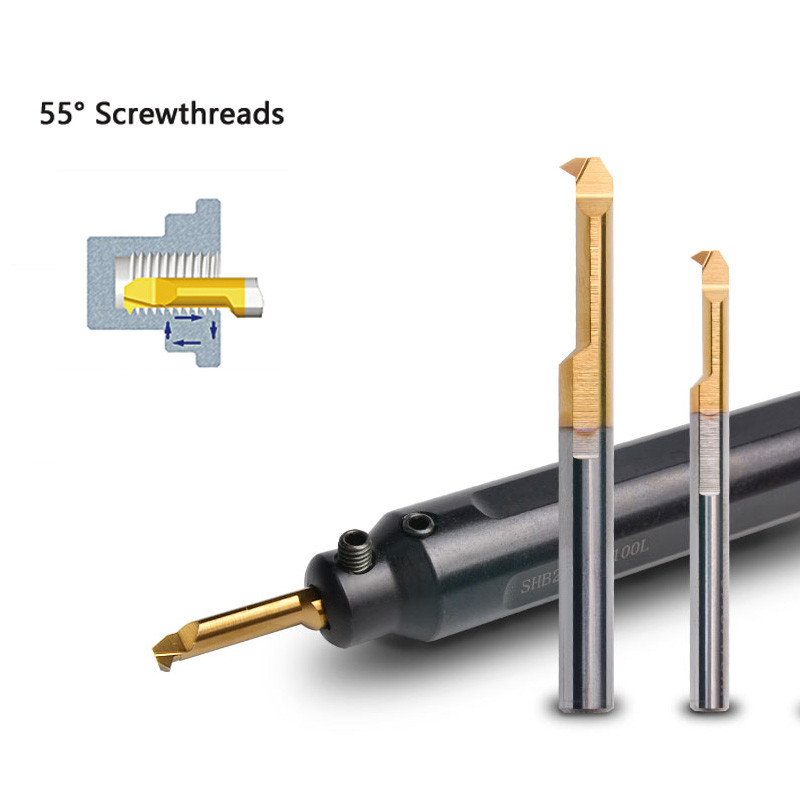

The MTHR A55 is an internal boring and turning tool featuring 55° angled tips, widely used for finishing inner hole threading in mini turning lathes. Unlike the round shank MIR A55, the MTHR A55 has a rear end tilt, making it suitable for locking into precise tool holders. Additionally, its advanced nano coating on ultrafine carbide ensures a high-quality, smooth machining surface and excellent wear resistance. This tool is ideal for a wide range of materials, particularly stainless steels and various alloys.
Product Details--- MTHR A55 Inner Threading Tool
Summary product information as below:
Brand Name: | Drow |
Model Number: | MTHR A55 Inner Threading Tool |
Customized support: | OEM, ODM. |
Standard: | ISO |
Product type: | Solid carbide boring tiny tool |
Material: | Tungsten Carbide,100% new Material |
Coating: | To be defined per your different demands and application |
Hardness: | HRA 91~93.5 |
Flute length | 10.0~25.0mm |
Flute color: | bronze,matte |
Precision: | ±0.005mm |
Shank diameter: | 4.0~7.0mm |
Shank type | rear end tilt |
Tip arc: | R0.05-R0.15 |
Tip angle θ: | 55° |
Penetration depth | 0.40~1.80mm |
Mainly Difference to MIR A55: | a.Rear end tilt while MIR A55 is round shank. b.Different coating. c. Suitable for different tool holder. |
Sample Order: | Acceptable |
Usage: | Internal turning and threading |
Workpiece Material: | Steel,Stainless steel,Cast iron and so on |
Machining type: | Semi-Finishing/Finishing |
Product Features:
No Need for Recalibration: Eliminates time costs and enhances efficiency.
Integrated Design: The boring tool is integrally formed, and its unique chip flute design reduces chip buildup, significantly improving processing efficiency.
Precision Grinding: The entire process utilizes a five-axis machine tool for precision grinding, ensuring high accuracy of the tool tip's r-angle and a smooth cutting edge under 500x magnification.
Internal Cooling: The slotted design on the inclined section at the tail, along with a central water outlet in the cutter sleeve, enables effective internal cooling during processing.

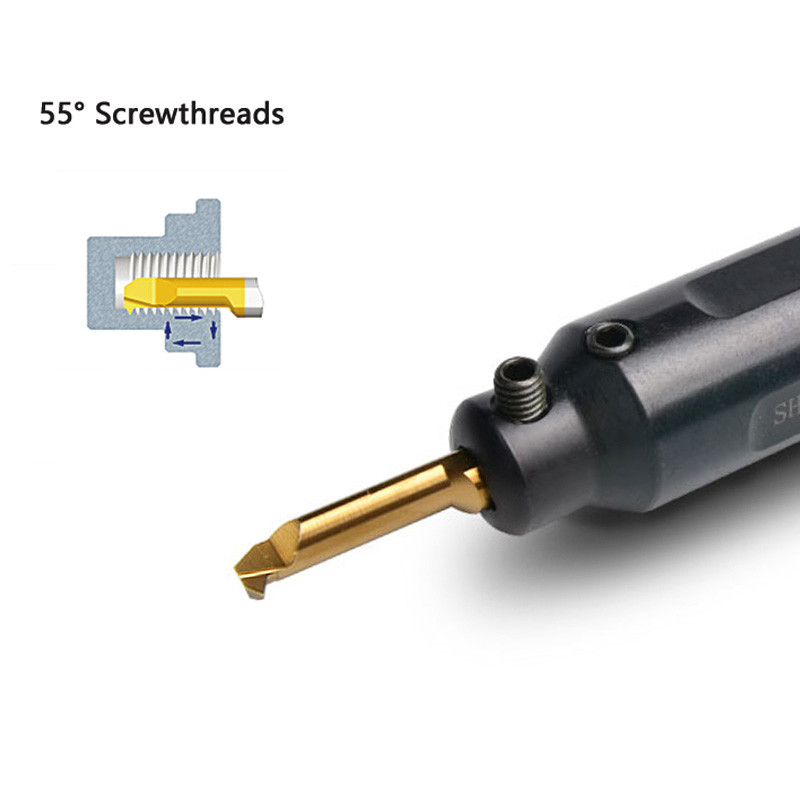

Stable Positioning: Solid carbide boring bars are precisely positioned in the adaptor using a locating pin, while set screw clamps ensure increased stability for rigid clamping.
Easy Tool Changes: Tools of the same type can be changed using the positioning pin, maintaining the same total extension length.
Product Specification:
Model | Minimum diameter of machining hole(mm)ΦA | ΦD | r | L1 | L2 | F | S | θ | Pitch Range | JS25 | AL25 |
MTHR0431L10A55-N-(C) | 3.1 | 4 | 0.05 | 35 | 10 | 2.9 | 1.0 | 55 | 48-24 | ● | ● |
MTHR0441L12A55-N-(C) | 4.1 | 4 | 0.05 | 37 | 12 | 3.9 | 1.2 | 55 | 48-24 | ● | ● |
MTHR0551L15A55-N-(C) | 5.1 | 5 | 0.08 | 40 | I5 | 4.9 | 1.6 | 55 | 48-16 | ● | ● |
MTHR0661L20A55-N-(C) | 6.1 | 6 | 0.08 | 45 | 20 | 5.9 | 1.9 | 55 | 48-12 | ● | ● |
MTHR0771L25A55-N-(C) | 7.1 | 7 | 0.15 | 54 | 25 | 7.9 | 2.5 | 55 | 26-11 | ● | ● |
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code |
