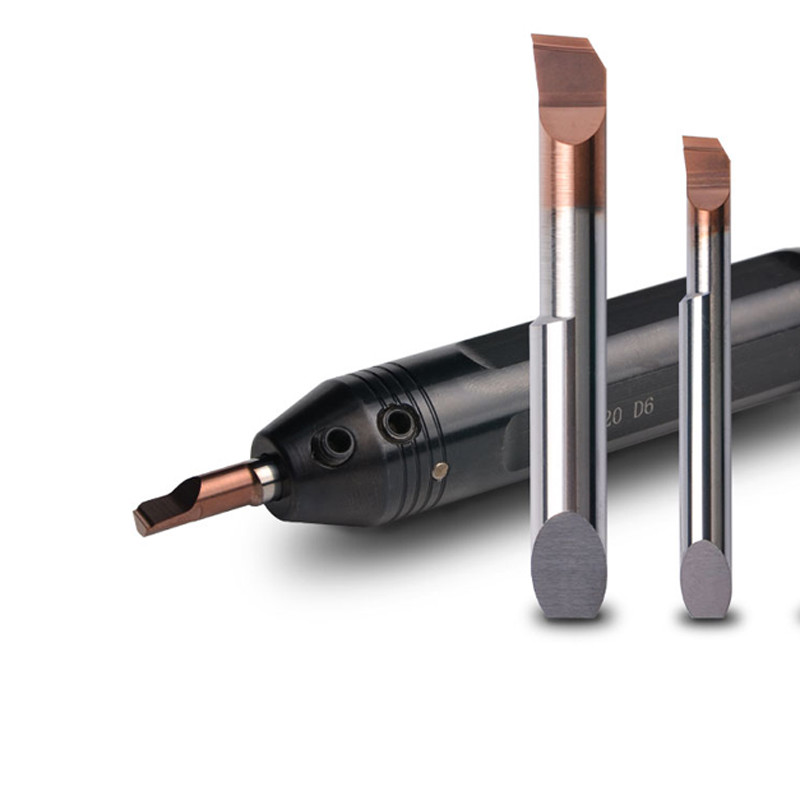

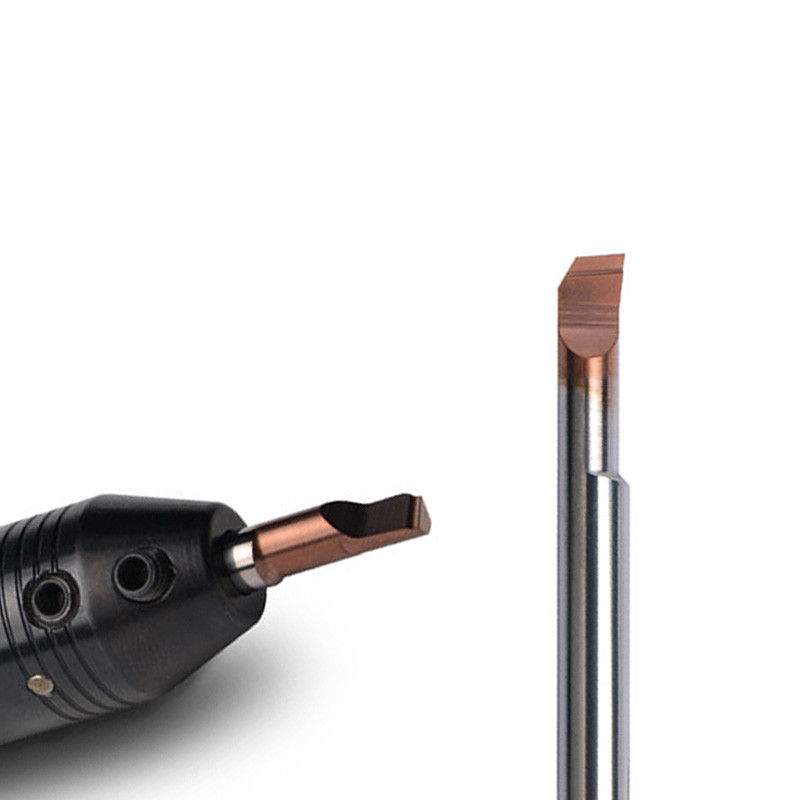

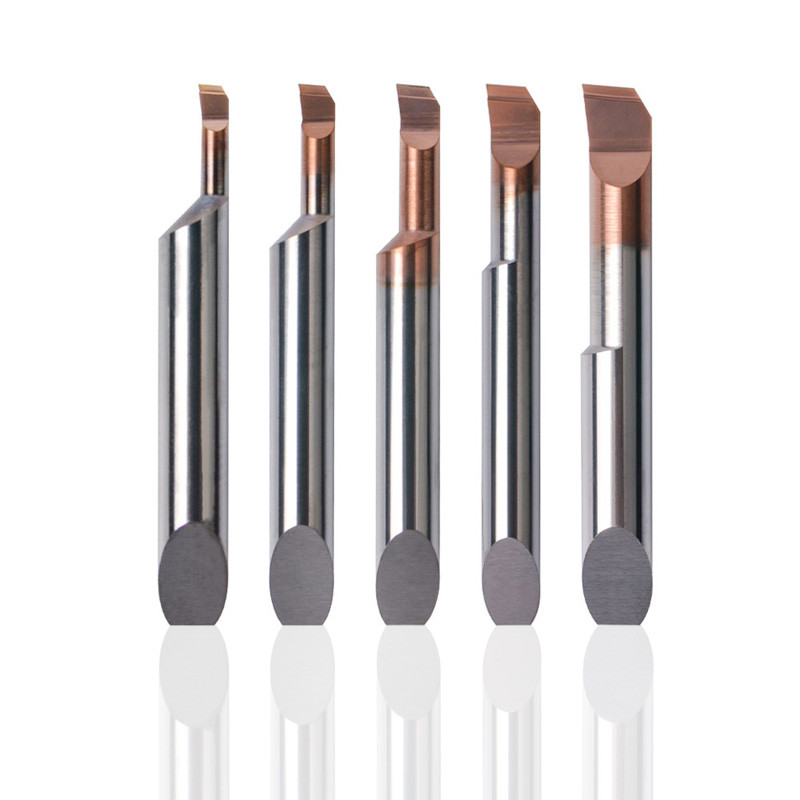

The MBPR is an internal boring and turning tool widely utilized for finishing internal boring operations in mini turning lathes. It is particularly well-suited for use with machine tools such as CNC lathes and centering machines.
Unlike the round shank MTR, the MBPR features a rear-end tilt design, making it compatible with precision locking tool holders. Additionally, its advanced nanometer coating on ultrafine carbide enhances both the smoothness of the machined surface and the tool's wear resistance.
Product Details--- MBPR Internal Boring Tool
As for finished product of MPR , specific product information as below:
Brand Name: | Drow |
Model Number: | MBPR Internal boring tool |
Customized support: | OEM, ODM, OBM. |
Standard: | ISO |
Product type: | Solid carbide boring tiny tool |
Material: | Tungsten Carbide,100% new Material |
Coating: | To be defined, with or without coating, Nano coating |
Hardness: | HRA 91~93 |
Flute length | 6.0~35.0mm |
Flute color: | bronze,matte |
Precision: | ±0.005mm |
Shank diameter: | 4.0~7.0mm |
Shank type | rear end tilt |
Penetration depth: | 0.2mm-0.7mm |
Tip arc: | R0.05-R0.20 |
Mainly Difference to MTR: | a.Rear end tilt while MTR is round shank. b.Different coating. c. suitable for different tool holder. |
Sample Order: | Accepted |
Usage: | Internal turning and boring for finishing |
Workpiece Material: | Steel,Stainless steel,Cast iron and so on |
Machining type: | Semi-Finishing/Finishing |
Product Features:
No need for re-calibration of tools, reducing time costs and improving efficiency.
The boring tool features an integrally formed design, and its unique chip flute design minimizes chip buildup, enhancing processing efficiency.
The entire process utilizes a five-axis machine tool for precision grinding, ensuring high accuracy of the tool tip's r-angle and a smooth cutting edge, even under 500x magnification.
The slotted design on the inclined section at the tail, along with a center water outlet in the cutter sleeve, enables effective internal cooling during processing.
Solid carbide boring bars are precisely positioned in the adaptor using a locating pin, while set screw clamps ensure increased stability for rigid clamping.
Tool changes can be made using the same type through the positioning pin, maintaining the same total extension length.
Product Specification:
Model | Minimum diameter of machining hole(mm)ΦA | ΦD | r | L1 | L2 | F | S | JS25 | AL25 |
MBPR0421L06R005-Y-(C) | 2.1 | 4 | 0.05 | 31 | 6 | 1.85 | 0.2 | ● | ● |
MBPR0421L06R010-Y-(C) | 2.1 | 4 | 0.10 | 31 | 6 | 1.85 | 0.2 | ● | ● |
MBPR0421L10R005-Y-(C) | 2.1 | 4 | 0.05 | 35 | 10 | 1.85 | 0.2 | ● | ● |
MBPR0421L10R010-Y-(C) | 2.1 | 4 | 0.10 | 35 | 10 | 1.85 | 0.2 | ● | ● |
MBPR0426L08R005-Y-(C) | 2.6 | 4 | 0.05 | 33 | 8 | 2.35 | 0.25 | ● | ● |
MBPR0426L08R010-Y-(C) | 2.6 | 4 | 0.10 | 33 | 8 | 2.35 | 0.25 | ● | ● |
MBPR0426L08R015-Y-(C) | 2.6 | 4 | 0.15 | 33 | 8 | 2.35 | 0.25 | ● | ● |
MBPR0426L12R005-Y-(C) | 2.6 | 4 | 0.05 | 37 | 12 | 2.35 | 0.25 | ● | ● |
MBPR0426L12R010-Y-(C) | 2.6 | 4 | 0.10 | 37 | 12 | 2.35 | 0.25 | ● | ● |
MBPR0426L12R015-Y-(C) | 2.6 | 4 | 0.15 | 37 | 12 | 2.35 | 0.25 | ● | ● |
MBPR0431L10R005-Y-(C) | 3.1 | 4 | 0.05 | 35 | 10 | 2.8 | 0.30 | ● | ● |
MBPR0431L10R010-Y-(C) | 3.1 | 4 | 0.10 | 35 | 10 | 2.8 | 0.30 | ● | ● |
MBPR0431L10R015-Y-(C) | 3.1 | 4 | 0.15 | 35 | 10 | 2.8 | 0.30 | ● | ● |
MBPR0431L15R005-Y-(C) | 3.1 | 4 | 0.05 | 40 | 15 | 2.8 | 0.30 | ● | ● |
MBPR0431L15R010-Y-(C) | 3.1 | 4 | 0.10 | 40 | 15 | 2.8 | 0.30 | ● | ● |
MBPR0431L15R015-Y-(C) | 3.1 | 4 | 0.15 | 40 | 15 | 2.8 | 0.30 | ● | ● |
MBPR0441L12R005-Y-(C) | 4.1 | 4 | 0.05 | 37 | 12 | 3.8 | 0.40 | ● | ● |
MBPR0441L12R010-Y-(C) | 4.1 | 4 | 0.10 | 37 | 12 | 3.8 | 0.40 | ● | ● |
MBPR0441L12R020-Y-(C) | 4.1 | 4 | 0.20 | 37 | 12 | 3.8 | 0.40 | ● | ● |
MBPR0441L16R005-Y-(C) | 4.1 | 4 | 0.05 | 41 | 16 | 3.8 | 0.40 | ● | ● |
MBPR0441L16R010-Y-(C) | 4.1 | 4 | 0.10 | 41 | 16 | 3.8 | 0.40 | ● | ● |
MBPR0441L16R020-Y-(C) | 4.1 | 4 | 0.20 | 41 | 16 | 3.8 | 0.40 | ● | ● |
MBPR0441L20R005-Y-(C) | 4.1 | 4 | 0.05 | 45 | 20 | 3.8 | 0.40 | ● | ● |
MBPR0441L20R010-Y-(C) | 4.1 | 4 | 0.10 | 45 | 20 | 3.8 | 0.40 | ● | ● |
MBPR0441L20R020-Y-(C) | 4.1 | 4 | 0.20 | 45 | 20 | 3.8 | 0.40 | ● | ● |
MBPR0551L15R010-Y-(C) | 5.1 | 5 | 0.10 | 40 | 15 | 4.8 | 0.50 | ● | ● |
MBPR0551L15R020-Y-(C) | 5.1 | 5 | 0.20 | 40 | 15 | 4.8 | 0.50 | ● | ● |
MBPR0551L20R010-Y-(C) | 5.1 | 5 | 0.10 | 45 | 20 | 4.8 | 0.50 | ● | ● |
MBPR0551L20R020-Y-(C) | 5.1 | 5 | 0.20 | 45 | 20 | 4.8 | 0.50 | ● | ● |
MBPR0551L25R010-Y-(C) | 5.1 | 5 | 0.10 | 50 | 25 | 4.8 | 0.50 | ● | ● |
MBPR0551L25R020-Y-(C) | 5.1 | 5 | 0.20 | 50 | 25 | 4.8 | 0.50 | ● | ● |
MBPR0661L15R010-Y-(C) | 6.1 | 6 | 0.10 | 40 | 15 | 5.8 | 0.60 | ● | ● |
MBPR0661L15R020-Y-(C) | 6.1 | 6 | 0.20 | 40 | 15 | 5.8 | 0.60 | ● | ● |
MBPR0661L20R010-Y-(C) | 6.1 | 6 | 0.10 | 45 | 20 | 5.8 | 0.60 | ● | ● |
MBPR0661L20R020-Y-(C) | 6.1 | 6 | 0.20 | 45 | 20 | 5.8 | 0.60 | ● | ● |
MBPR0661L25R010-Y-(C) | _6.1 | 6 | _0.10 | 50 | 25 | 5.8 | 0.60 | ● | ● |
MBPR0661L25R020-Y-(C) | 6.1 | 6 | 0.20 | 50 | 25 | 5.8 | 0.60 | ● | ● |
MBPR0661L30R010-Y-(C) | 6.1 | 6 | 0.10 | 55 | 30 | 5.8 | 0.60 | ● | ● |
MBPR0661L30R020-Y-(C) | 6.1 | 6 | 0.20 | 55 | 30 | 5.8 | 0.60 | ● | ● |
MBPR0771L25R010-Y-(C) | 7.1 | 7 | 0.10 | 54 | 25 | 6.8 | 0.70 | ● | ● |
MBPR0771L25R020-Y-(C) | 7.1 | 7 | 0.20 | 54 | 25 | 6.8 | 0.70 | ● | ● |
MBPR0771L35R010-Y-(C) | 7.1 | 7 | 0.10 | 64 | 35 | 6.8 | 0.70 | ● | ● |
MBPR0771L35R020-Y-(C) | 7.1 | 7 | 0.20 | 64 | 35 | 6.8 | 0.70 | ● | ● |
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code |
