16ERAG60 Application Field:
16ER/IR AG60 is a type of CNC carbide threading turning inserts.These inserts are mainly used for threading&turning operations on CNC machines which are available in external or internal threading.That’s why we called ER or IR. Specific inserts naming rules of this series as the end shows.
We Drow also provide a quite wide range of specification, similar products include 11ER/IR,22ER/IR and GR520 etc. There is always one type of inserts that can meet your requirement.
Name Rule Of Threading Inserts ( ISO, Double Language ):
Machining Reference:
Threading inserts cutting times within defined depth for reference:
| ISO-60° Metric full profile-external | ||||||||||||||||
| Pitch (mm) |
Cutting Depth (mm) |
Cutting Times | Cutting Steps | |||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |||
| 0.5 | 0.31 | 4 | 0.1 | 0.08 | 0.07 | 0.06 | ||||||||||
| 0.75 | 0.46 | 5 | 0.16 | 0.14 | 0.1 | 0.06 | 0.04 | |||||||||
| 1.0 | 0.61 | 5 | 0.18 | 0.15 | 0.12 | 0.1 | 0.06 | |||||||||
| 1.25 | 0.77 | 6 | 0.19 | 0.17 | 0.14 | 0.11 | 0.1 | 0.06 | ||||||||
| 1.5 | 0.92 | 6 | 0.22 | 0.21 | 0.17 | 0.14 | 0.12 | 0.06 | ||||||||
| 1.75 | 1.07 | 8 | 0.22 | 0.21 | 0.16 | 0.13 | 0.11 | 0.09 | 0.09 | 0.06 | ||||||
| 2.0 | 1.23 | 8 | 0.24 | 0.23 | 0.17 | 0.16 | 0.14 | 0.12 | 0.11 | 0.06 | ||||||
| 2.5 | 1.53 | 10 | 0.26 | 0.23 | 0.19 | 0.17 | 0.15 | 0.13 | 0.12 | 0.11 | 0.11 | 0.06 | ||||
| 3.0 | 1.84 | 12 | 0.27 | 0.25 | 0.2 | 0.18 | 0.16 | 0.14 | 0.13 | 0.12 | 0.12 | 0.11 | 0.1 | 0.06 | ||
| 3.5 | 2.15 | 12 | 0.33 | 0.3 | 0.24 | 0.21 | 0.18 | 0.17 | 0.15 | 0.14 | 0.14 | 0.12 | 0.11 | 0.06 | ||
| 4.0 | 2.45 | 14 | 0.34 | 0.31 | 0.24 | 0.22 | 0.17 | 0.16 | 0.16 | 0.14 | 0.14 | 0.13 | 0.12 | 0.12 | 0.11 | 0.06 |
| 4.5 | 2.76 | 14 | 0.38 | 0.34 | 0.28 | 0.24 | 0.22 | 0.2 | 0.18 | 0.16 | 0.16 | 0.15 | 0.14 | 0.13 | 0.12 | 0.06 |
| 5.0 | 3.07 | 14 | 0.42 | 0.38 | 0.32 | 0.27 | 0.24 | 0.22 | 0.2 | 0.18 | 0.18 | 0.17 | 0.16 | 0.15 | 0.12 | 0.06 |

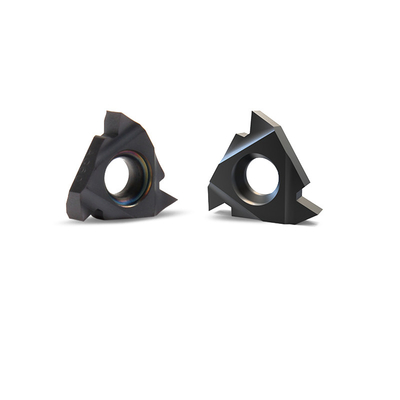

Product Details--- 16ER/IR AG60
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2.Cutting edge inclination designation is good to control chip flow direction and obtains excellent surface quality
3. High performance composite coating support which can offer you super hard and smooth workpiece surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. International standard and precise dimension. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design, coating, marking, packing are also available if you need. Strong technical power support us to meet your special requirement..
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Designation | Thread Pitch | IC | L | X | Y | |
| mm | TPI | |||||
| 16ERA60 | 0.5~1.5 | 48~16 | 3/8" | 16.5 | 0.6 | 0.8 |
| 16ERG60 | 1.75~3.0 | 14~8 | 16.5 | 1.1 | 1.5 | |
| 16ERAG60 | 0.5~3.0 | 48~8 | 16.5 | 1.1 | 1.5 | |
| 16IRA60 | 0.5~1.5 | 48~16 | 3/8" | 16.5 | 0.6 | 0.8 |
| 16IRG60 | 1.75~3.0 | 14~8 | 16.5 | 1.1 | 1.5 | |
| 16IRAG60 | 0.5~3.0 | 48~8 | 16.5 | 1.1 | 1.5 | |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
1.Checked carefully by experienced staff.
2.Microscope check.
Why choose us:
1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .
FAQ
Q1:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: what else can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
Q5: Can we get a discount if our ordered quantity is big enough ?
A: Yes. If your ordered quantity is big enough , we can offer you our best price and will give you a discount.
Q6:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q7:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
