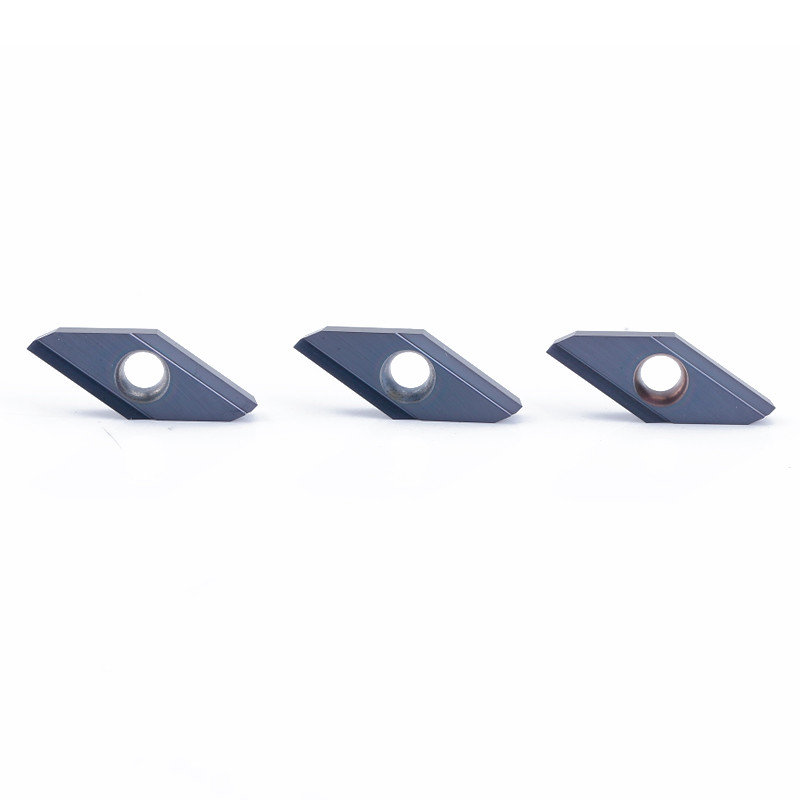

CSVF Series Carbide Front Turning Cnc Lathe Parts For Steel Parts Machining

10pcs
MOQ
negotiable
Price
CSVF Series Carbide Front Turning Cnc Lathe Parts For Steel Parts Machining
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: CSVF Series Front-turning Inserts
Customized Support: OEM, ODM
Standard: ISO
Product Type: Carbide Turning Inserts,CNC Tool Parts
Material: 100% Virgin Tungsten Carbide
Hardness: HRA 91.3~92.3
Dimensions: α: 0.15 Or 0.30mm; β: 2° Or 5°; θ: 30°;
Precision: ±0.005mm
Holder: CSVR/L-GX,CSVR/L-NC,CSVR/L-NC-F Etc
Coating: To Be Defined Per Your Different Demands And Application
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Usage: For Back Turning Metal Working
Compatible Machine: CNC Lathes, Centering Machines Etc
High Light:

CSVF cnc lathe parts

,

Front Turning cnc lathe parts

,

CSVF cnc turning parts

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: CSVF Series Front-turning Inserts
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

CSVF Series Carbide Front Turning Inserts For CNC Lathe Steel Parts Machining

CSVF Application Field:

CSVF is a popular type of CNC carbide front turning inserts.It is mainly used for turning & cutting operations on CNC lathe & machine which are available in different shapes & cutting angles. There are many parameters to consider when choosing turning insert,such as insert geometry, insert grade, insert shape (nose angle), insert size, nose radius and entering (lead) angle. Please carefully select to achieve good chip control and machining performance.



Production Standard:

This series inserts are mainly refer to the standard:NTK’s CSVF series.Its size details can be processed separately according to customer requirements.

CSVF: NTK CSVF series,sub-series of CSVF, a well-known series of carbide front turning inserts. For this type, our Drow standard production size and standing stock specifications mainly refer to this NTK series.

Specific information refer to below “Product Specification”.



Product Details--- CSVF

  • Excellent material: 100% original carbide powder.Lead our insert to excellent wear resistance and toughness.
  • Dimensions: ① α: 0.15 or 0.30mm; ②β: 2° or 5°; ③θ: 30°; etc.
  • Advanced coating: To be defined per your application.Whatever,Our insert surface adopts advanced coating technology , leading it to well corrosion resistance and wear resistance.
  • Fine grinding process: The surface of the insert has high smoothness, good cutting edge quality and no cutting resistance.Effectively reduce the friction and reduce the loss.
  • Perfect fit: Accurate and smooth insert edge strips.It is not easy to produce micro-vibration during processing on the holder.
  • Applicable materials: Uncoated inserts for aluminum,non-ferrous metals,non-metallic.Coated inserts for carbon steel,alloy steel,mold steel,other harden steel,ductile iron etc.
  • Customization: If standard stock cannot meet your demands, please attach CAD drawings/3D drawings for your inquiry, thank you.
  • Mature insert production: All the inserts of production, coatings are used in high-end EU processing equipment. To know more, please refer to below “Entire Production Quick View”.



Product Features:

CSVF Series Carbide Front Turning Cnc Lathe Parts For Steel Parts Machining 0

1.Chamfering,passivation treatment and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2. High performance composite coating support which can offer you super hard and smooth surface.
3. Professional and efficiency chip-breaker design, provides perfect cutting performance.
4. Precise dimension, high accuracy without burr. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.

5.The base material imported from Europe has better oxidation resistance and wear resistance.
6. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.



Product Specification:

CSVF Series Carbide Front Turning Cnc Lathe Parts For Steel Parts Machining 1

Part Number W1 S D1
CSV_ 3 8.7 5



Part Number Dimensions(mm)
Chipbreaker α β θ rε
Front Turning CSVF_ 11FR/L V N 0.30 30° 0.0
11FR/L V-A 0.30 30° 0.0
11FR/L V-M 0.15 30° 0.0
11FR/L V-C 0.15 30° 0.0
11FR/L VB Y 0.30 30° 0.0
11FR/L VB-A 0.30 30° 0.0
11FR/L VB-M 0.15 30° 0.0
11FR/L VB-C 0.15 30° 0.0
Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CSVF series, etc.





Entire Production Quick View:

1.Get the integral insert blank through sintering 100% original carbide powder .

2.Flat surface grinding machining.

3.Surrounding surface grinding machining.

4.Create insert cutting edge per specifications.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.



Quality Inspection:

1.Checked carefully by experienced staff.

2.Microscope check.

CSVF Series Carbide Front Turning Cnc Lathe Parts For Steel Parts Machining 2



Why choose us:
1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .



FAQ

Q1: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping

Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you send products to our Forwarder in China?

A: Yes,if you have Forwarder in China,we will glad to send products to him/her.

Q4: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.

Q5. Could you offer OEM and ODM service?
A:It’s okay , we have more than 10 years experience in OEM service.Our professional R&D team is dedicated to design products to fit various demands of customers. They can always offer the professional advice and solutions for you!

Q6: Can we get a discount if our ordered quantity is big enough ?

A: Yes. If your ordered quantity is big enough , we can offer you our best price and will give you a discount.

Q7:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
