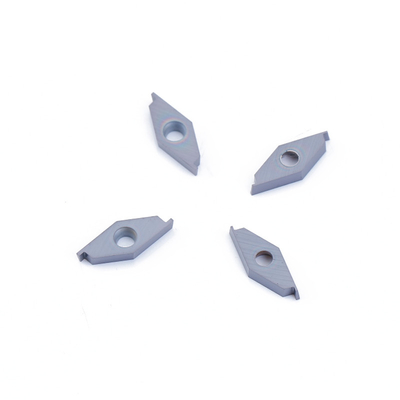

CSVT 11FR P60-035A CNC Lathe Inserts Carbide External Threading Inserts

10pcs
MOQ
negotiable
Price
CSVT 11FR P60-035A   CNC Lathe Inserts Carbide External Threading Inserts
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: CSVT Series Threading Inserts
Customized Support: OEM, ODM
Standard: ISO
Product Type: Carbide External Threading Inserts,CNC Tool Parts
Material: 100% Virgin Tungsten Carbide
Coating: PVD Or To Be Defined Per Your Different Demands And Application
Usage: External Threading And Turning
Hardness: HRA 91.3~92.3
Precision: ±0.005mm
Dimensions: Pitch:0.2~0.5mm; Teeth/Inch:127~51;rε: Max0.03mm.
Holder: CSVR/L-GX,CSVR/L-NC,CSVR/L-NC-F Etc
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Compatible Machine: CNC Lathes, Centering Machines Etc
High Light:

CSVT 11FR P60-035A cnc lathe inserts

,

Threading cnc lathe inserts

,

External Threading Carbide Inserts

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: CSVT Series Threading Inserts
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

CSVT 11FR P60-035A CNC Carbide External Threading Inserts For CNC Turning Lathe



CSVT Application Field:

CSVT is a useful type of CNC carbide external threading & turning inserts.It is mainly used for external threading& turning operations on lathe & CNC machines which are available in different shapes of thread.

Carbide inserts are replaceable and usually indexable bits of cemented carbide used in machining steels, cast iron, high temperature alloys, and nonferrous materials. Carbide inserts allow faster machining and leave better finishes on metal parts



Production Standard:

This series inserts are mainly refer to the standard:NTKs CSVT series.Its size details can be processed separately according to customer requirements.

CSVT: NTK CSVT series,sub-series of CSV, a well-known series of carbide threading inserts. For this type, our Drow standard production size and standing stock specifications mainly refer to this NTK series.

Specific information refer to below Product Specification.



Machining Reference:

Threading inserts cutting times within defined depth for reference:

ISO-60° Metric full profile-external
Part Number Pitch
(mm)
Cutting Depth
(mm)
Cutting Times Cutting Steps
1 2 3 4 5 6 7
CSVT 11FR/L P60-035A(B) 0.2 0.25 4 0.08 0.07 0.06 0.04
0.25 0.32 5 0.09 0.07 0.07 0.05 0.04
0.35 0.48 6 0.12 0.1 0.09 0.07 0.06 0.04
0.4 0.55 6 0.15 0.12 0.1 0.08 0.06 0.04
0.5 0.70 7 0.16 0.14 0.12 0.1 0.08 0.06 0.04



Product Details--- CSVT

  • Excellent material: 100% original carbide powder.Lead our insert to excellent wear resistance and toughness.
  • Dimensions: ①Pitch:0.2~0.5mm. ②Teeth per inch:127~51. ③rε: Max0.03mm.
  • Advanced coating: To be defined per your application.Whatever,Our insert surface adopts advanced coating technology , leading it to well corrosion resistance and wear resistance.
  • Fine grinding process: The surface of the insert has high smoothness, good cutting edge quality and no cutting resistance.Effectively reduce the friction and reduce the loss.
  • Perfect fit: Accurate and smooth insert edge strips.It is not easy to produce micro-vibration during processing on the holder.
  • Applicable materials: Uncoated inserts for aluminum,non-ferrous metals,non-metallic.Coated inserts for carbon steel,alloy steel,mold steel,other harden steel,ductile iron etc.
  • Customization: If standard stock cannot meet your demands, please attach CAD drawings/3D drawings for your inquiry, thank you.
  • Mature insert production: All the inserts of production, coatings are used in high-end EU processing equipment. To know more, please refer to below “Entire Production Quick View”.

Product Features:

CSVT 11FR P60-035A   CNC Lathe Inserts Carbide External Threading Inserts 0

1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.

2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.

6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.



Product Specification:

CSVT 11FR P60-035A   CNC Lathe Inserts Carbide External Threading Inserts 1

Part Number W1 S D1
CSV_ 3 8.7 5



Part Number Dimensions(mm)
Pitch Teeth/Inch(TPI)
CSVT_ 11FR P60-035A 0.2~0.5 127~51 max0.03
11FL P60-035A 0.2~0.5 127~51 max0.03
11FR P60-035B 0.2~0.5 127~51 max0.03
11FL P60-035B 0.2~0.5 127~51 max0.03
Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CSVT series, etc.





Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.



Quality Inspection:

CSVT 11FR P60-035A   CNC Lathe Inserts Carbide External Threading Inserts 2



Why choose us:

1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Consistent quality:Stable performance like good anti impact resistance

4.Cost-effective:Excellent tool lifetime

5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .



FAQ

Q1: Are insert samples available ?

A: We provide free sample,the exneeds to be paid by the buyer



Q2: Can we get a discount if our ordered quantity is big enough ?

A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.



Q3: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping



Q4: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service
