TGF32L 200 010 Grooving Grinding Carbide Inserts For CNC Machine Holder

10pcs
MOQ
negotiable
Price
TGF32L 200 010 Grooving Grinding Carbide Inserts For CNC Machine Holder
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: TGF32R/L 200 010
Customized Support: OEM,ODM
Standard: Kyocera, NTK
Product Type: Carbide Grooving Inserts,CNC Tool Parts
Material: 100% Virgin Tungsten Carbide
Coating: To Be Defined Per Your Different Demands And Application
Hardness: HRA 91.3~92.3
Precision: ±0.005mm
Dimensions: CW0.33~2.50mm.CDX0.8~2.50mm.RE0.05~0.10mm.
Holder: KTGF R/L, S...KTGF R/L, GTT R/L, NGT... R/L Etc
Usage: Metal Cutting,Grooving
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Compatible Machine: CNC Lathes, Centering Machines, Cutter Arranging Machine Skateboard Lathes, Turret Lathes And Other Longitudinal Lathes
High Light:

TGF32L 200 010 grinding carbide inserts

,

CNC Machine Holder grinding carbide inserts

,

TGF32L 200 010 Grooving Carbide Inserts

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: TGF32R/L 200 010
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

TGF32L 200 010 Fine Grinding Carbide Grooving Inserts For CNC Machine Holder

TGF32 Application Field:

TGF32 is a series of carbide grooving inserts,mainly used for turning & grooving operations on lathe & CNC machines which are available in different shapes & cutting angles.



Inserts Production Standard:

The insert size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc.

TGF32: Kyocera TGF32 series, a popular series of carbide inserts.”L200 010” represents the specification and cutting orientation of insert.Our Drow standard production size and standing stock specifications mainly refer to this series.

GTMH(X)32: A popular series of carbide insert, named by NTK.Similar specification as TGF32.

Specific information refer to below Product Specification.



Product Details--- TGF32L200 010

  • Excellent material: 100% original carbide powder.Lead our insert to excellent wear resistance and toughness.
  • Dimensions: ①CW:0.33~2.50mm. ②CDX: 0.8~2.50mm. ③RE: 0.05~0.10mm.
  • Advanced coating: To be defined per your application.Whatever,Our insert surface adopts advanced coating technology , leading it to well corrosion resistance and wear resistance.
  • Fine grinding process: The surface of the insert has high smoothness, good cutting edge quality and no cutting resistance.Effectively reduce the friction and reduce the loss.
  • Perfect fit: Accurate and smooth insert edge strips.It is not easy to produce micro-vibration during processing on the holder.
  • Applicable materials: Uncoated inserts for aluminum,non-ferrous metals,non-metallic.Coated inserts for carbon steel,alloy steel,mold steel,other harden steel,ductile iron etc.
  • Customization: If standard stock cannot meet your demands, please attach CAD drawings/3D drawings for your inquiry, thank you.
  • Mature insert production: All the inserts of production, coatings are used in high-end EU processing equipment. To know more, please refer to below “Entire Production Quick View”.

Product Features:

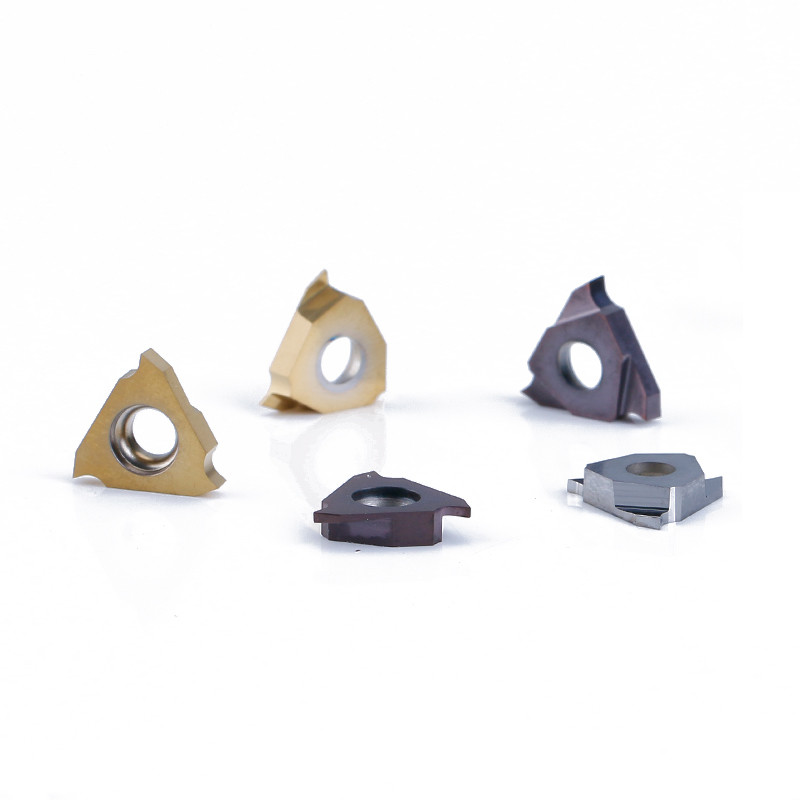

TGF32L 200 010 Grooving Grinding Carbide Inserts For CNC Machine Holder 0

1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2. High performance composite coating support which can offer you super hard and smooth surface.
3. Professional and efficiency chip-breaker design, provides perfect cutting performance.
4. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.

5.The base material imported from Europe has better oxidation resistance and wear resistance.
6. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.



Product Specification:

TGF32L 200 010 Grooving Grinding Carbide Inserts For CNC Machine Holder 1

Part Number Dimensions(mm) Applicable
Tool Holders
CW CDX RE
TGF32 R/L 033-005 0.33 0.8 0.05 KTGF R/L S...KTGF R/L GTT R/L NGT... R/L
050-005 0.50 1.2 0.05
075-010 0.75 2.0 0.1
095-010 0.95
100-010 1.00
120-010 1.20
125-010 1.25
140-010 1.40
145-010 1.45
150-010 1.50
175-010 1.75
200-010 2.00 2.5
250-010 2.50
Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc.



Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.



Quality Inspection:

TGF32L 200 010 Grooving Grinding Carbide Inserts For CNC Machine Holder 2



Why choose us:

1.Stable performance like good anti impact resistance

2.Excellent tool lifetime

3.Negative chamfer designation gives blade good strength

4.Smooth cutting

5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products

If you have any questions about turning inserts, welcome to inquiry! Or if you have interest to join us , welcome to be our agents.



FAQ

Q1: Are insert samples available ?

A: We provide free sample,the freight needs to be paid by the buyer

Q2: Can we get a discount if our ordered quantity is big enough ?

A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.

Q3: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping

Q4: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service

Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
