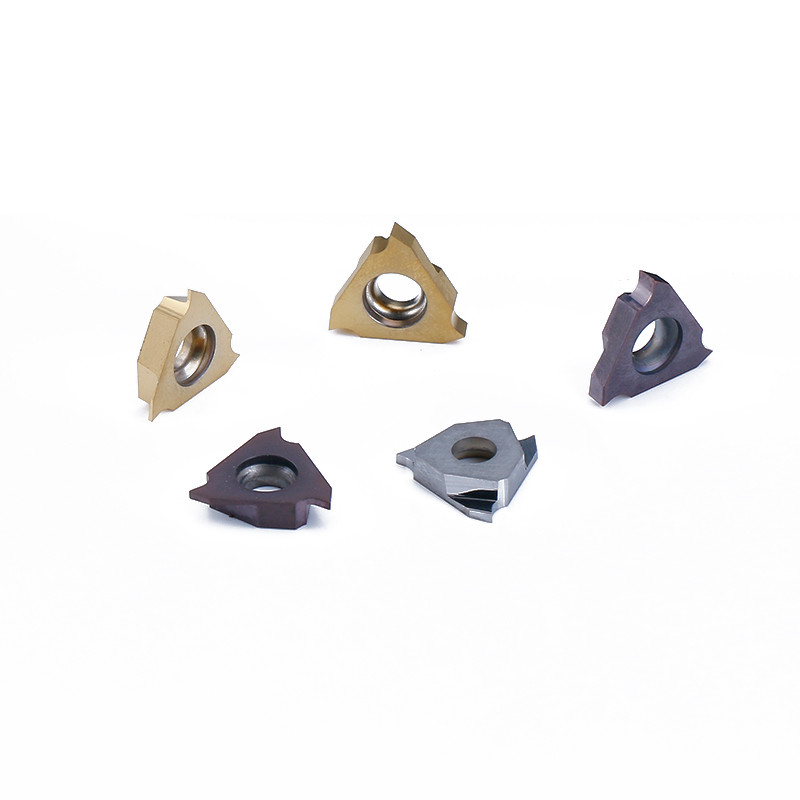

TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy

10pcs
MOQ
negotiable
Price
TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Model Number: TGF32 / GTMX32-075R VT Series
Customized Support: OEM,ODM
Standard: Kyocera, NTK
Product Type: CNC Tool Parts,Carbide Grooving Inserts
Material: 100% Virgin Tungsten Carbide
Hardness: HRA 91.3~92.3
Precision: ±0.005mm
Dimensions: CW0.33~2.50mm.CDX0.8~2.50mm.RE0.05~0.10mm.
Holder: KTGF R/L, S...KTGF R/L, GTT R/L, NGT... R/L Etc
Coating: To Be Defined Per Your Different Demands And Application
Applicable Materials (Uncoated Inserts):: Aluminum,copper,non-ferrous Metals.non-metallic
Applicable Materials(Coated Inserts):: Carbon Steel,alloy Steel,mold Steel,other Steel,ductile Iron
Usage: Metal Cutting,Grooving
Compatible Machine: CNC Lathes, Centering Machines Etc
High Light:

TGF32 GTMH32-VT-075R lathe groove tool

,

High Accuracy lathe groove tool

,

High Accuracy CNC Lathe Tool

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: TGF32 / GTMX32-075R VT Series
Payment & Shipping Terms
Packaging Details: 10 pcs in a box, 100 boxes in a carton
Delivery Time: Depend on the quantity. Usually 1~3 workdays if in stock; Over 3000pcs need to be negotiated
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

TGF32 GTMH32-VT-075R High Accuracy Carbide Grooving Inserts For CNC Lathe

Application Field:

GTMH32-VT is a series of carbide grooving inserts,mainly used for turning & grooving operations on lathe & CNC machines which are available in different shapes & cutting angles.



Production Standard:

The insert size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc.

TGF32: Kyocera TGF32 series, a popular series of carbide inserts. Our Drow standard production size and standing stock specifications mainly refer to this series.

GTMH32: A popular series of carbide insert, named by NTK.Similar specification as TGF32. ”VT” represents one of sub-series.”075R” represents the specification and cutting orientation of insert.

Specific information refer to below Product Specification.



Product Details--- GTMH32-VT

  • Excellent material: 100% original carbide powder.Lead our insert to excellent wear resistance and toughness.
  • Dimensions: ①CW:0.33~2.50mm. ②CDX: 0.8~2.50mm. ③RE: 0.05~0.10mm.
  • Advanced coating: To be defined per your application.Whatever,Our insert surface adopts advanced coating technology , leading it to well corrosion resistance and wear resistance.
  • Fine grinding process: The surface of the insert has high smoothness, good cutting edge quality and no cutting resistance.Effectively reduce the friction and reduce the loss.
  • Perfect fit: Accurate and smooth insert edge strips.It is not easy to produce micro-vibration during processing on the holder.
  • Applicable materials: Uncoated inserts for aluminum,non-ferrous metals,non-metallic.Coated inserts for carbon steel,alloy steel,mold steel,other harden steel,ductile iron etc.
  • Customization: If standard stock cannot meet your demands, please attach CAD drawings/3D drawings for your inquiry, thank you.
  • Mature insert production: All the inserts of production, coatings are used in high-end EU processing equipment. To know more, please refer to below “Entire Production Quick View”.

Product Features:

TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy 0

1.In order to well protect the insert edge from fracture and lead to smooth workpiece surface, we process the insert cutting edge through chamfering and tip-arc processing.
2. The insert will offer you super hard and smooth surface due to its high performance composite coating support.
3. Efficiency and professional chip-breaker design, provides perfect cutting performance.
4. Precise dimension, high accuracy and low tolerance. Perfectly fit to tool holders so that not easy to produce micro-vibration during machining.

5.The base material imported from Europe has better oxidation resistance and wear resistance.
6. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.



Product Specification:

TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy 1

Part Number Dimensions(mm) Applicable
Tool Holders
CW CDX RE
TGF32 R/L 033-005 0.33 0.8 0.05 KTGF R/L S...KTGF R/L GTT R/L NGT... R/L
050-005 0.50 1.2 0.05
075-010 0.75 2.0 0.1
095-010 0.95
100-010 1.00
120-010 1.20
125-010 1.25
140-010 1.40
145-010 1.45
150-010 1.50
175-010 1.75
200-010 2.00 2.5
250-010 2.50
Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc.



Entire Production Quick View:

1.Get the integral insert blank through sintering 100% original carbide powder .

2.Flat surface grinding machining.

3.Surrounding surface grinding machining.

4.Create insert cutting edge per specifications.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.



Quality Inspection:

1.Checked carefully by experienced staff.

2.Microscope check.

3.Projector detection
4.ZOLLER detection

5.German forging difference process detection

TGF32 GTMH32-VT-075R CNC Lathe Groove Tool High Accuracy 2



Why choose us:

1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .



FAQ

Q1:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping

Q4:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.

Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
