KTGF_F Application Field:

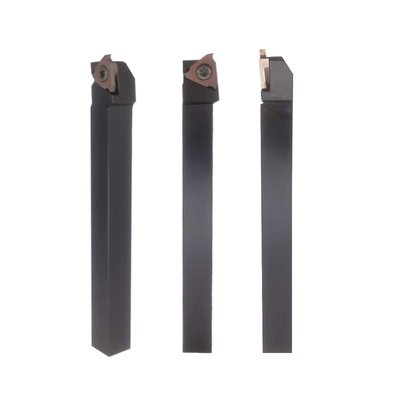

Reliable tool holder,tool bar for Threading And Grooving Inserts, like TGF32R/L Series. Besides,The locking pin design of the tool handle realizes efficient and repeated clamping, greatly reducing labor time costs.
We can always meet your special demands due to our outstanding R&D team and standardizing factory production. Welcome to contact us!
Product Details--- KTGF_F Tool Holder
Specific product information as below:
Brand Name: | Drow |
Model Number: | KTGFR/L,KTGF_F Tool-holders |
Customized support: | OEM, ODM |
Product type: | Toolholders for Cutting Inserts |
Material: | Steel |
Color: | Black coating |
Specification: | Refer to below details introduction |
Weight of item: | / |
Usage: | Tool holder of cutting inserts , internal Turning Tool, CNC Machining |
Compatible machine: | CNC lathes, centering machines etc |
Machining type | Threading and Grooving |
Customization | Professional and Available |
Product Features:
1.Anti-shake and anti-vibration
2.Anti-seismic and anti-bending, stable performance, improve production quality and efficiency.
3.Precision ground high-quality tool steel, high temperature quenching, good toughness
4. The locking pin design of the tool handle realizes efficient and repeated clamping, greatly reducing labor time costs
Product Specification
Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | |||||
H | B | L | H1 | f | T | ||||
KTGFR/L-1010K-16F | 10 | 10 | 125 | 4 | 10 | 2.5 | TGF32R/L ... | BFT*4008 | TR*15 |
KTGFR-1012K-16F | 10 | 12 | 125 | 2 | 12 | BFT*4010 | |||
KTGFR/L-1212K-16F | 12 | 12 | 125 | 2 | 12 | ||||
KTGFR/L-1616K-16F | 16 | 16 | 125 | ~~ | 16 | ||||
KTGFR-2020K-16F | 20 | 20 | 125 | ~~ | 20 |
Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | ||||
H | B | L | H1 | f | ||||
KTGFR/L-1616K-16 | 16 | 16 | 125 | 16 | 20 | TGF32R/L ... | BFT*4010 | TR*15 |
KTGFR/L-2020K-16 | 20 | 20 | 125 | 20 | 25 | |||
KTGFR/L-2525M-16 | 25 | 25 | 150 | 25 | 32 |
Why choose us:
1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .
Rigorous Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
FAQ
Q1: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q2: What can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools,tool holders&customized carbide precision molds
Q3:Why should you buy from us not from other suppliers?
A: We Drow devote ourselves in research and development of tungsten carbide, cutting tools, cutting inserts, and new materials, specializing in the design and production of carbide turning inserts , indexable inserts, CNC inserts etc.
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q6:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
Q7: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
Q8: Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q9: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
