KTGF Application Field:
Reliable tool holder,tool bar for Threading And Grooving Inserts, like TGF32 Series. Besides,The locking pin design of the tool handle realizes efficient and repeated clamping, greatly reducing labor time costs.
We can always meet your special demands due to our outstanding R&D team and standardizing factory production. Welcome to contact us!

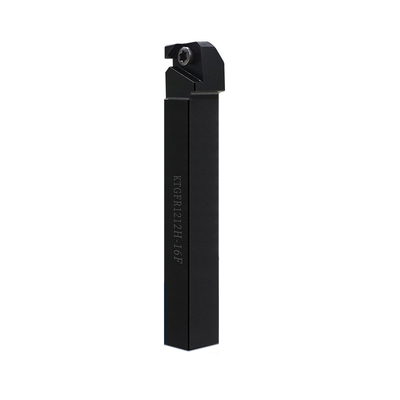

Product Details--- KTGF Tool Holder
Specific product information as below:
| Brand Name: | Drow |
| Model Number: | KTGFR/L,KTGFS,KTGF_F Tool-holders |
| Customized support: | OEM, ODM |
| Product type: | Toolholders for Cutting Inserts |
| Material: | Steel |
| Color: | Black coating |
| Specification: | Refer to below details introduction |
| Weight of item: | / |
| Usage: | Tool holder of cutting inserts , internal Turning Tool, CNC Machining |
| Compatible machine: | CNC lathes, centering machines etc |
| Machining type | Threading and Grooving |
| Customization | Professional and Available |
Product Features:
1.Anti-shake and anti-vibration
2.Anti-seismic and anti-bending, stable performance, improve production quality and efficiency.
3.Precision ground high-quality tool steel, high temperature quenching, good toughness
4. The locking pin design of the tool handle realizes efficient and repeated clamping, greatly reducing labor time costs
Product Specification
| Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | |||||
| H | B | L | H1 | f | T | ||||
| KTGFR/L-1010K-16F | 10 | 10 | 125 | 4 | 10 | 2.5 | TGF32R/L ... | BFT*4008 | TR*15 |
| KTGFR-1012K-16F | 10 | 12 | 125 | 2 | 12 | BFT*4010 | |||
| KTGFR/L-1212K-16F | 12 | 12 | 125 | 2 | 12 | ||||
| KTGFR/L-1616K-16F | 16 | 16 | 125 | ~~ | 16 | ||||
| KTGFR-2020K-16F | 20 | 20 | 125 | ~~ | 20 | ||||
| Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | ||||
| H | B | L | H1 | f | ||||
| KTGFR/L-1616K-16 | 16 | 16 | 125 | 16 | 20 | TGF32R/L ... | BFT*4010 | TR*15 |
| KTGFR/L-2020K-16 | 20 | 20 | 125 | 20 | 25 | |||
| KTGFR/L-2525M-16 | 25 | 25 | 150 | 25 | 32 | |||
| Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | ||||
| H | B | L | H1 | f | ||||
| KTGFSL-1616K-16 | 16 | 16 | 125 | 16 | 22 | TGF32R ... | BFT*4008 | TR*15 |
| KTGFSL-2020K-16 | 20 | 20 | 125 | 20 | 26 | |||
| Item Code (Threading&Grooving) |
Dimensions,mm | Insert | Screw | Wrench | ||||
| D | L | H | F1 | F2 | ||||
| S16H-KTGFL-16 | 16 | 100 | 15 | 6 | 9 | TGF32R ... | BFT*4008 | TR*15 |
Why choose us:
1. Innovation in production technology: Complex surfaces and functional structures can be formed quickly and remain accurate.
2.Processing speed: short production cycle, fast delivery time, ensure delivery on time.
3. Strict quality control of work keeps quality consistent.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5. Complete equipment: good processing capacity, more production lines, advanced equipment, complete supporting facilities.
6. Competitive price: Reasonable design and material selection guide us to a competitive price, which can offer you a better price.
Rigorous Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
FAQ
Q1: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q2: What can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools,tool holders&customized carbide precision molds
Q3:Why should you buy from us not from other suppliers?
A: We Drow devote ourselves in research and development of tungsten carbide, cutting tools, cutting inserts, and new materials, specializing in the design and production of carbide turning inserts , indexable inserts, CNC inserts etc.
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q6: Can we get a discount if our ordered quantity is big enough ?
A: Yes. If your ordered quantity is big enough , we can offer you our best price and will give you a discount.
Q7. Could you offer OEM and ODM service?
A:It’s okay , we have more than 10 years experience in OEM service.Our professional R&D team is dedicated to design products to fit various demands of customers. They can always offer the professional advice and solutions for you!
Q8: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.
Q9:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
Q10: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.
