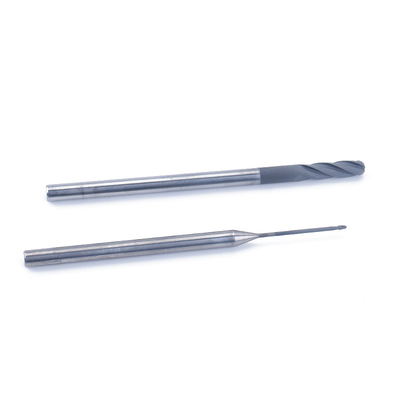

Product Details--Diamond Coating Ball Face End Mill Cutter
Specific product information as below:
| Brand Name: | Drow |
| Model Number: | Diamond Coating Ball End Milling Cutter |
| Customized support: | OEM, ODM, OBM. |
| Standard | ISO |
| Product type: | End Milling Cutter |
| Material: | Tungsten Carbide, 100% New Material |
| Coating: | diamond coating |
| Hardness: | HRA 91~93.5 |
| Cutting Diameter: | 0.5~10mm |
| Shank Diameter: | 4~10mm |
| Sample Order: | Acceptable |
| Usage: | For side machining,surface machining,R type processing,profiling |
| Applicable Material: | Suitable for processing graphite, alloy, non-ferrous materials etc |
| Compatible machine: | CNC machining center, engraving machine and other high-speed machines. |
| Machining type | Rough/Semi-Finishing |
Product Features:
1. Material selection: Tungsten Carbide, 100% New Material with high wear resistance and hardness.
2.Application Field: Suitable for side machining,surface machining,R type processing,profiling.
3.Applicable Material:Suitable for processing graphite, alloy, non-ferrous materials etc
4.Burr-free cutting:The cutting edge is sharp and wear-resistant,has the characteristics of good chip removal,high processing efficiency,precise thread and high durability
5.Sharp and precise:Using mirror grinding technology,combined with large-capacity chip flutes,sharp and precise.
6.Diamond coating: The heat insulation performance of diamond coating is remarkable, coupled with the superior high wear resistance of diamond, the performance of diamond-coated ball face milling cutters during processing is 10-15 higher than that of ordinary tungsten steel milling cutters times. It saves time for tool change, and avoids the trouble of tool marks caused by multiple tool changes. Greatly lower your production cost.
Product Specification:
| Specifications | Shank Diameter | Cutting Diameter | Cutting Length | Effective Length | Total Length | Flutes |
| d mm | D mm | L1 mm | L2 mm | L mm | ||
| R0.25*1*4*D4*50L*2F | 4 | 0.5 | 1 | 4 | 50 | 2 |
| R0.25*1*5*D4*60L*2F | 4 | 0.5 | 1 | 5 | 60 | 2 |
| R0.3*1.2*8*D4*60L*2F | 4 | 0.6 | 1.2 | 8 | 60 | 2 |
| R0.5*2*10*D4*50L*2F | 4 | 1 | 2 | 10 | 50 | 2 |
| R0.5*3*D4*60L*2F | 4 | 1 | 3 | 3 | 60 | 2 |
| R0.5*2*8*D4*75L*2F | 4 | 1 | 2 | 8 | 75 | 2 |
| R0.75*3*10*D4*60L*2F | 4 | 1.5 | 3 | 10 | 60 | 2 |
| R0.75*3*8*D4*75L*2F | 4 | 1.5 | 3 | 8 | 75 | 2 |
| R1*4*10*D4*60L*2F | 4 | 2 | 4 | 10 | 60 | 2 |
| R1*4*10*D4*75L*2F | 4 | 2 | 4 | 10 | 75 | 2 |
| R1.5*6*D3*60L*2F | 3 | 3 | 6 | 6 | 60 | 2 |
| R1.5*6*10*D4*50L*2F | 4 | 3 | 6 | 6 | 50 | 2 |
| R1.5*6*D3*75L*2F | 3 | 3 | 6 | 6 | 75 | 2 |
| R1.5*6*15*D4*75L*2F | 4 | 3 | 6 | 15 | 75 | 2 |
| R2*8*D4*60L*2F | 4 | 4 | 8 | 8 | 60 | 2 |
| R2*8*D4*75L*2F | 4 | 4 | 8 | 8 | 75 | 2 |
| R2*8*30*D4*100L*2F | 4 | 4 | 8 | 30 | 100 | 2 |
| R3*12*D6*60L*2F | 6 | 6 | 12 | 12 | 60 | 2 |
| R3*12*D6*75L*2F | 6 | 6 | 12 | 12 | 75 | 2 |
| R3*12*D6*100L*2F | 6 | 6 | 12 | 12 | 100 | 2 |
| R4*16*D8*75L*2F | 8 | 8 | 16 | 16 | 75 | 2 |
| R4*16*D8*150L*2F | 8 | 8 | 16 | 16 | 150 | 2 |
| R5*20*D10*100L*2F | 10 | 10 | 20 | 20 | 100 | 2 |
| R5*20*D10*150L*2F | 10 | 10 | 20 | 20 | 150 | 2 |
Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality:Absolutely strict inspection. high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1:Do you produce special cutting tools?
A: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for various demanding applications and variety materials!
Q2:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q3:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5: what can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
Q6: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.
Q7. Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q8: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.
Q9:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
Q10: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
