Application Field:
MFR is a kind of internal face grooving boring cutter, widely used in the metal inner hole face grooving and boring of micro CNC turning machine tools or lathe. Different to round shank MFR,MFGR is rear end tilt and suitable for locking precise tool holders. Besides, with different advanced nano coating on ultrafine carbide, this tool achieves high smooth machining surface and wear resistance. It is ideal for wide range of materials, particularly stainless steels and various alloys etc.

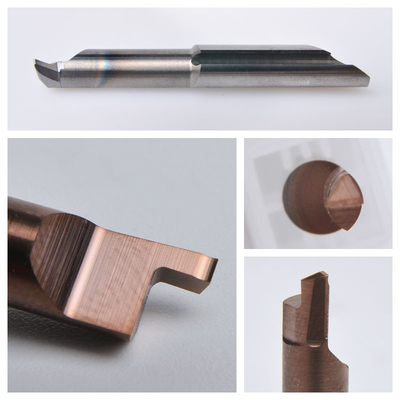

Product Details--- MFGR Inner face grooving tool
Summary product information as below:
Brand Name: | Drow |
Model Number: | MFGR Inner face grooving tools |
Customized support: | OEM, ODM. |
Standard: | ISO |
Product type: | Solid carbide boring tiny tool |
Material: | Tungsten Carbide,100% new Material |
Coating: | To be defined per your different demands and application |
Hardness: | HRA 91~93.5 |
Band width | 0.50~3.00mm |
Flute length | 12.0~20.0mm |
Flute color: | bronze,matte |
Precision: | ±0.005mm |
Shank diameter: | 4.0~6.0mm |
Shank type | rear end tilt |
Tip arc: | R0.05-R0.10 |
Mainly Difference to MFR: | a.Rear end tilt while MFR is round shank. b.Different coating. c. Suitable for different tool holder. |
Sample Order: | Acceptable |
Usage: | Inner face grooving and boring |
Workpiece Material: | Steel,Stainless steel,Cast iron and so on |
Machining type: | Semi-Finishing/Finishing |
Product Features:
1.Suitable for metal inner face grooving machining.
2.No need to re-calibrate tools Reduce time cost Improve efficiency.
3.The boring tool is integrally formed. Besides,unique chip flute design reduces chip buildup Improve processing efficiency.
4.The whole process adopts five-axis machine tool for precision grinding.High precision of the r-angle of the tool tip,and the cutting edge is smooth under the 500 times microscope.
5.Slotted design on the side of the inclined position at the tail, with the center water outlet cutter sleeve,it can realize internal cooling processing.
6.Solid carbide boring bars are precisely positioned into the adaptor by a locating pin.Set screw clamp bars ensure increased stability for rigid clamping.
7.Change the tool with the same type through the positioning pin,and the total extension length is the same.
Product Specification:
Model | Minimum diameter of machining hole(mm)ΦA | ΦD | r | L1 | L2 | F | S | W | JS25 | AL25 |
MFGR0450L12W050-U-(C) | 5.0 | 4 | 0.05 | 37 | 12 | 1.9 | 1.00 | 0.50 | ● | ● |
MFGR0450L12W100-U-(C) | 5.0 | 4 | 0.05 | 37 | 12 | 1.9 | 1.50 | 1.00 | ● | ● |
MFGR0450L12W150-U-(C) | 5.0 | 4 | 0.05 | 37 | 12 | 1.9 | 2.00 | 1.50 | ● | ● |
MFGR0560L15W100-U-(C) | 6.0 | 5 | 0.10 | 40 | 15 | 2.4 | 1.50 | 1.00 | ● | ● |
MFGR0560L15W150-U-(C) | 6.0 | 5 | 0.10 | 40 | 15 | 2.4 | 2.50 | 1.50 | ● | ● |
MFGR0560L15W200-U-(C) | 6.0 | 5 | 0.10 | 40 | 15 | 2.4 | 3.00 | 2.00 | ● | ● |
MFGR0680L20W100-U-(C) | 8.0 | 6 | 0.10 | 45 | 20 | 2.9 | 2.00 | 1.00 | ● | ● |
MFGR0680L20W150-U-(C) | 8.0 | 6 | 0.10 | 45 | 20 | 2.9 | 3.00 | 1.50 | ● | ● |
MFGR0680L20W200-U-(C) | 8.0 | 6 | 0.10 | 45 | 20 | 2.9 | 5.00 | 2.00 | ● | ● |
MFGR0680L20W300-U-(C) | 8.0 | 6 | 0.10 | 45 | 20 | 2.9 | 6.00 | 3.00 | ● | ● |
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code |
