CSVG Application Field:

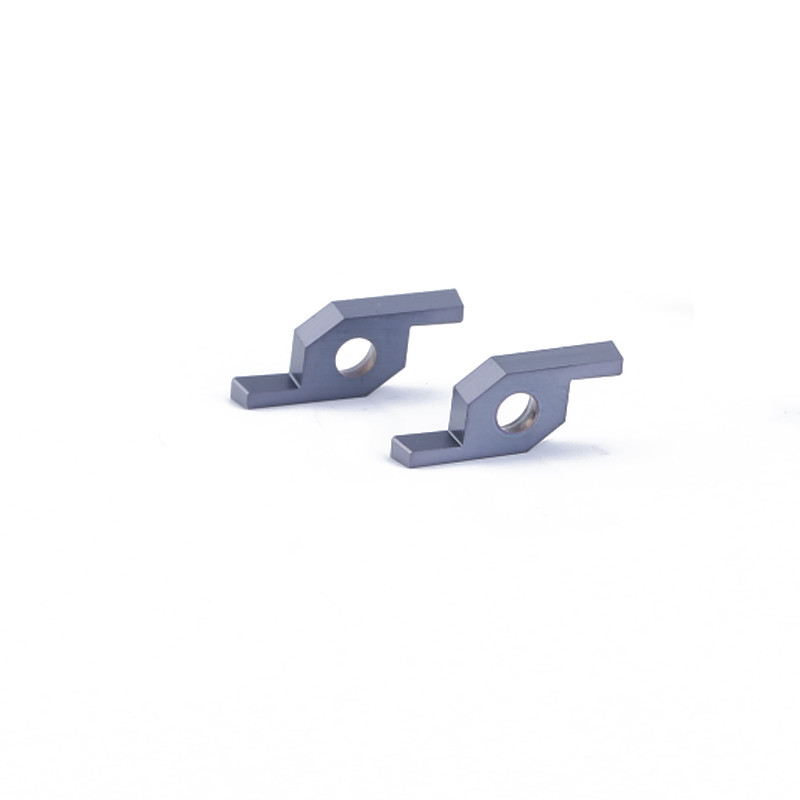

CSVG is a popular type of CNC carbide external grooving & parting-off inserts.It is mainly used for grooving& cutting operations on lathe & CNC machines which are available in different shapes & cutting angles.
Carbide inserts are replaceable and usually indexable bits of cemented carbide used in machining steels, cast iron, high temperature alloys, and nonferrous materials.This inserts allow faster machining and leave better finishes on metal parts.
Production Standard:
This series inserts are mainly refer to the standard:NTK’s CSVG series.Its size details can be processed separately according to customer requirements.
CSVG: NTK CSVG series,sub-series of CSV, a well-known series of carbide grooving inserts. For this type, our Drow standard production size and standing stock specifications mainly refer to this NTK series.
Specific information refer to below “Product Specification”.
Product Details--- CSVG
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number | W1 | S | D1 |
| CSV_ | 3 | 8.7 | 5 |
| Part Number | Dimensions(mm) | |||
| W | Maximum Cutting Diameter φD | rε | ||
| CSVG_ | 11F R/L V025 | 0.25 | 0.15 | 0.0 |
| 11F R/L V030 | 0.30 | |||
| 11F R/L V035 | 0.35 | |||
| 11F R/L V040 | 0.40 | |||
| 11F R/L V045 | 0.45 | 0.45 | ||
| 11F R/L V050 | 0.50 | |||
| 11F R/L V055 | 0.55 | |||
| 11F R/L V060 | 0.60 | |||
| 11F R/L V065 | 0.65 | |||
| 11F R/L V070 | 0.70 | |||
| 11F R/L V075 | 0.75 | 1.40 | ||
| 11F R/L V080 | 0.80 | |||
| 11F R/L V085 | 0.85 | |||
| 11F R/L V090 | 0.90 | |||
| 11F R/L V095 | 0.95 | |||
| 11F R/L V100 | 1.00 | |||
| 11F R/L V110 | 1.10 | 2.60 | ||
| 11F R/L V120 | 1.20 | |||
| 11F R/L V130 | 1.30 | |||
| 11F R/L V140 | 1.40 | |||
| 11F R/L V150 | 1.50 | |||
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CSVG series, etc. | ||||
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
