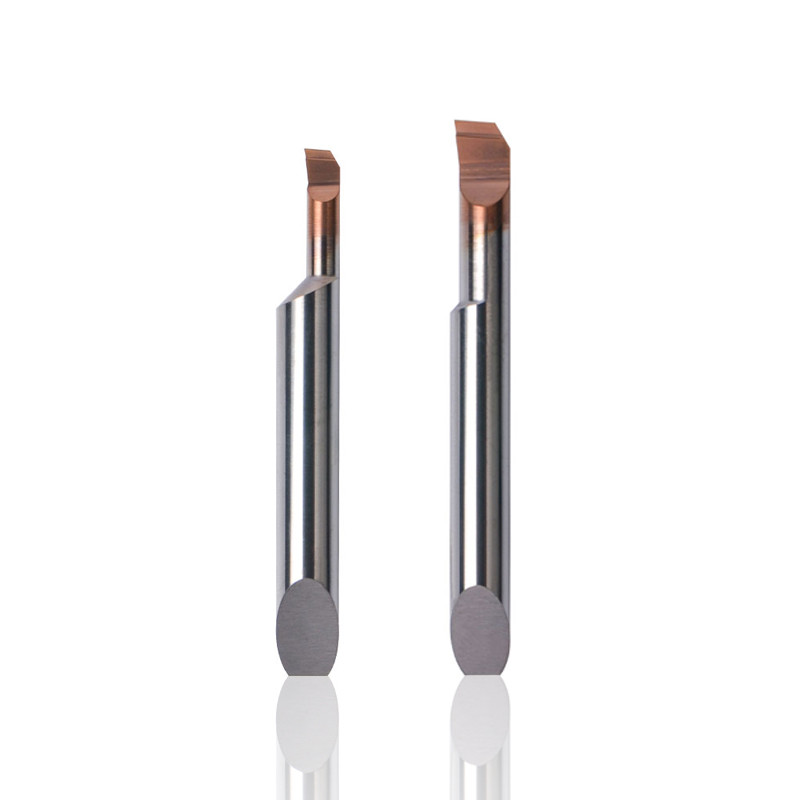

Rear End Tilt MBPR Internal Carbide Boring Tools Calibration-Free

1pcs
MOQ
negotiable , per the quantity and specification of order
Price
Rear End Tilt MBPR Internal Carbide Boring Tools Calibration-Free
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Drow
Material: Tungsten Steel
Accuracy: ±0.005mm
Model Number: MBPR Internal Boring Tool
Customized Support: OEM,ODM,OBM
Flute Color: Bronze,matte
Penetration Depth: 0.2mm~0.7mm
Shank Diameter: 4.0~7.0mm
Shank Type: Rear End Tilt
Hardness: HRA 91-93.5
Usage: Internal Boring And Turning
Coating: To Be Defined, With Or Without Coating, Nano Coating
Tip Arc: R0.05-R0.20
Controlling Mode: CNC Lathes, Centering Machines
High Light:

Rear End Tilt Carbide Boring Tools

,

Calibration-Free Carbide Boring Tools

,

MBPR internal boring tool

Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Drow
Certification: ISO9001
Model Number: MBPR Internal Boring Tool
Payment & Shipping Terms
Packaging Details: 1. Each tungsten steel boring tool comes with plastic tube, 10 pieces per set ; 2. Then packaged in carton with bubble films . Other package is available as your requirement
Delivery Time: Depend on the quantity. Usually 3~15 workdays if in stock; Over 500pcs need to be negotiated;
Payment Terms: T/T etc
Supply Ability: 100*1000 pcs/month
Product Description

Rear End Tilt MBPR,Calibration-free Tiny Boring Tool for Internal Hole Finishing
Drow_Carbide_Boring_Tools_EN.pdf

Drow_Carbide_Boring_Tools_MD_EN.pdf
Application Field:
MBPR is an internal boring and turning tool , widely used for internal boring finishing in Mini Turning Lathe. Mainly suitable for machine tools like CNC lathes, centering machines and so on.

Different to round shank MTR, MBPR is rear end tilt and suitable for locking precision tool holders. Besides, with different advanced nanometer coating on ultrafine carbide, this tool achieves high smooth machining surface and wear resistance.


Product Details--- MBPR Internal Boring Tool

  • Tool Material : 100% virgin tungsten carbide.
  • Usage: For internal boring&turning finishing.Suitable for Mini CNC lathe and so on.
  • Tool production : Our strong R&D power and advanced equipment can always support us to meet your various requirement.
  • Hardness: HRA91~93
  • Accuracy: ±0.005mm
  • Coating :To be defined per your application. Smooth fine surface of coated carbide provides good surface finish.
  • Mainly Difference to MTR: a.Rear end tilt while MTR is round shank. b. Different coating. c. suitable for different tool holder.

As for finished product of MPR , specific product information as below:

Brand Name: Drow
Model Number: MBPR Internal boring tool
Customized support: OEM, ODM, OBM.
Standard: ISO
Product type: Solid carbide boring tiny tool
Material: Tungsten Carbide,100% new Material
Coating: To be defined, with or without coating, Nano coating
Hardness: HRA 91~93
Flute length 6.0~35.0mm
Flute color: bronze,matte
Precision: ±0.005mm
Shank diameter: 4.0~7.0mm
Shank type rear end tilt
Penetration depth: 0.2mm-0.7mm
Tip arc: R0.05-R0.20
Mainly Difference to MTR: a.Rear end tilt while MTR is round shank.
b.Different coating.
c. suitable for different tool holder.
Sample Order: Accepted
Usage: Internal turning and boring for finishing
Workpiece Material: Steel,Stainless steel,Cast iron and so on
Machining type: Semi-Finishing/Finishing



Product Features:
1.No need to re-calibrate tools Reduce time cost Improve efficiency.

2.The boring tool is integrally formed. Besides,unique chip flute design reduces chip buildup Improve processing efficiency.

3.The whole process adopts five-axis machine tool for precision grinding.High precision of the r-angle of the tool tip,and the cutting edge is smooth under the 500 times microscope.

4.Slotted design on the side of the inclined position at the tail, with the center water outlet cutter sleeve,it can realize internal cooling processing.

5.Solid carbide boring bars are precisely positioned into the adaptor by a locating pin.Set screw clamp bars ensure increased stability for rigid clamping.

6.Change the tool with the same type through the positioning pin,and the total extension length is the same.



Product Specification:

Rear End Tilt MBPR Internal Carbide Boring Tools Calibration-Free 0



Model Minimum diameter of machining hole(mm)ΦA ΦD r L1 L2 F S JS25 AL25
MBPR0421L06R005-Y-(C) 2.1 4 0.05 31 6 1.85 0.2
MBPR0421L06R010-Y-(C) 2.1 4 0.10 31 6 1.85 0.2
MBPR0421L10R005-Y-(C) 2.1 4 0.05 35 10 1.85 0.2
MBPR0421L10R010-Y-(C) 2.1 4 0.10 35 10 1.85 0.2
MBPR0426L08R005-Y-(C) 2.6 4 0.05 33 8 2.35 0.25
MBPR0426L08R010-Y-(C) 2.6 4 0.10 33 8 2.35 0.25
MBPR0426L08R015-Y-(C) 2.6 4 0.15 33 8 2.35 0.25
MBPR0426L12R005-Y-(C) 2.6 4 0.05 37 12 2.35 0.25
MBPR0426L12R010-Y-(C) 2.6 4 0.10 37 12 2.35 0.25
MBPR0426L12R015-Y-(C) 2.6 4 0.15 37 12 2.35 0.25
MBPR0431L10R005-Y-(C) 3.1 4 0.05 35 10 2.8 0.30
MBPR0431L10R010-Y-(C) 3.1 4 0.10 35 10 2.8 0.30
MBPR0431L10R015-Y-(C) 3.1 4 0.15 35 10 2.8 0.30
MBPR0431L15R005-Y-(C) 3.1 4 0.05 40 15 2.8 0.30
MBPR0431L15R010-Y-(C) 3.1 4 0.10 40 15 2.8 0.30
MBPR0431L15R015-Y-(C) 3.1 4 0.15 40 15 2.8 0.30
MBPR0441L12R005-Y-(C) 4.1 4 0.05 37 12 3.8 0.40
MBPR0441L12R010-Y-(C) 4.1 4 0.10 37 12 3.8 0.40
MBPR0441L12R020-Y-(C) 4.1 4 0.20 37 12 3.8 0.40
MBPR0441L16R005-Y-(C) 4.1 4 0.05 41 16 3.8 0.40
MBPR0441L16R010-Y-(C) 4.1 4 0.10 41 16 3.8 0.40
MBPR0441L16R020-Y-(C) 4.1 4 0.20 41 16 3.8 0.40
MBPR0441L20R005-Y-(C) 4.1 4 0.05 45 20 3.8 0.40
MBPR0441L20R010-Y-(C) 4.1 4 0.10 45 20 3.8 0.40
MBPR0441L20R020-Y-(C) 4.1 4 0.20 45 20 3.8 0.40
MBPR0551L15R010-Y-(C) 5.1 5 0.10 40 15 4.8 0.50
MBPR0551L15R020-Y-(C) 5.1 5 0.20 40 15 4.8 0.50
MBPR0551L20R010-Y-(C) 5.1 5 0.10 45 20 4.8 0.50
MBPR0551L20R020-Y-(C) 5.1 5 0.20 45 20 4.8 0.50
MBPR0551L25R010-Y-(C) 5.1 5 0.10 50 25 4.8 0.50
MBPR0551L25R020-Y-(C) 5.1 5 0.20 50 25 4.8 0.50
MBPR0661L15R010-Y-(C) 6.1 6 0.10 40 15 5.8 0.60
MBPR0661L15R020-Y-(C) 6.1 6 0.20 40 15 5.8 0.60
MBPR0661L20R010-Y-(C) 6.1 6 0.10 45 20 5.8 0.60
MBPR0661L20R020-Y-(C) 6.1 6 0.20 45 20 5.8 0.60
MBPR0661L25R010-Y-(C) _6.1 6 _0.10 50 25 5.8 0.60
MBPR0661L25R020-Y-(C) 6.1 6 0.20 50 25 5.8 0.60
MBPR0661L30R010-Y-(C) 6.1 6 0.10 55 30 5.8 0.60
MBPR0661L30R020-Y-(C) 6.1 6 0.20 55 30 5.8 0.60
MBPR0771L25R010-Y-(C) 7.1 7 0.10 54 25 6.8 0.70
MBPR0771L25R020-Y-(C) 7.1 7 0.20 54 25 6.8 0.70
MBPR0771L35R010-Y-(C) 7.1 7 0.10 64 35 6.8 0.70
MBPR0771L35R020-Y-(C) 7.1 7 0.20 64 35 6.8 0.70
●:In Stock (C): Support internal coolant customization JS25,AL25: coating code



Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .


Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding

FAQ
Q1:Do you produce special cutting tools?
A: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for various demanding applications and variety materials!
Q2:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q3:If we want to cooperate with you, is it possible to get confidentiality?
A: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).

Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5: what can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide boring,cutting tools&customized carbide precision molds.
