55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11

China 55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11 supplier
55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11 supplier 55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11 supplier 55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11 supplier

Large Image :  55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11

Product Details:

Place of Origin: zhuzhou China
Brand Name: LiFA
Certification: ISO9001-2008
Model Number: KNUX160405R-11

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negociated
Packaging Details: 10PCS in a plastic box
Delivery Time: 15-20days
Payment Terms: T/T,Western union
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Grade: YBC251/ YBC351
Coating: CVD Coating Feature: 55°Parallelogram
Usage: External Turning Inserts Packaging: 10 Pcs / Box



KNUX160405R-11 - 55°Parallelogram Indexable Carbide Cutting Insert for Turning Machines





Description:



Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on 45steel, cast iron, nonferrous materials, plastics and other tough-to-machine materials.



Product features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Multi Layer coating TiC/Al2O3/TiN
  • Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting
  • Use for slotting and slab or straddle milling





Application:



Insert Width: .188
Corner Radius: .020
Through Hole: N/A
Chipbreaker Width: .086 x 12 degree
Right Hand

55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge.

KNUX single sided insert with Chipbreaker. Clamp on insert. 12 degree positive cutting action. 0 degree relief angle. For general purpose milling & turning carbon and alloy steels, tool steels.

Carbide Grades: (Choose above)
  • Uncoated grade used primarily in mild cutting conditions. Used for turning and milling steel, cast iron and other non-ferrous metals.
  •  For roughing to semi-finishing of Steel.
  •  Multi Layer CVD (TiC/Al203/TiN) Aluminum Oxide Coated. Ideal for machining 200 and 300 series stainless steel, cast irons, non-ferrous alloys and most high temperature alloys. Excellent wear resistance.
  • Multi Layer CVD (TiN/TiC/TiCN/TiN) coating. Best for general purpose milling and turning carbon and alloy steels and tool steels.

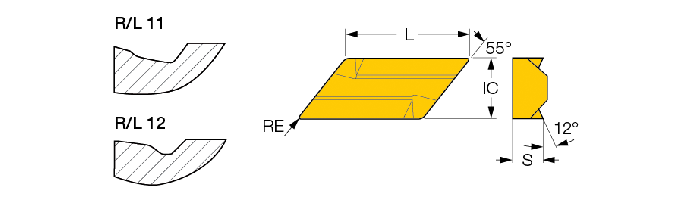

Specification:

  • 55° Parallelogram insert
  • Single sided
  • Positive rake
  • 16mm cutting edge
  • Available in left or right hand

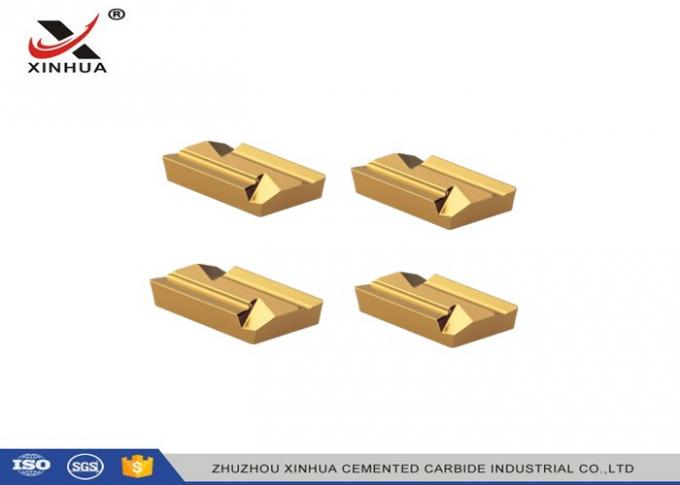

55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11





55° Parallelogram Indexable Carbide Cutting Inserts For Turning Machines KNUX160405R - 11
